MicroStrategy ONE

Format Cards

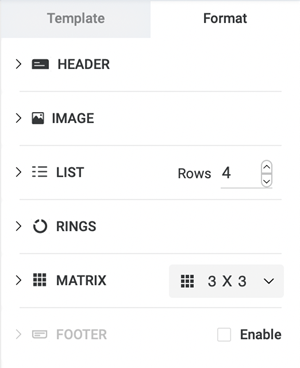

Customize your card header and widgets by taking advantage of the formatting options in the Format tab.

You can access the formatting options for the objects on your card by simply clicking on each widget in the Card Editor.

Card Header

Select a predefined header layout and customize the following.

Color Choose the background and text colors from the respective drop-downs

Thresholds Apply a threshold on a metric

Title Select the font weight and size

Subtitle Select the font weight and size

Link Select the font weight and size

List

Rows Define the number of rows in your list

Value Select the font color, weight, and size of your metric values

Label Select the font color, weight, alignment, and size of your labels

Matrix

Dimension Define the number of rows and columns in your matrix

Height Choose the matrix height

Alignment Choose the font alignment within your matrix

Value Select the font color, weight, and size of your metric values

Label Select the font color, weight, and size of your metric values

Ring

Ring Choose the ring color

Value Select the font color, weight, and size of your metric values

Label Select the font color, weight, alignment, and size of your metric values

Text Box

Display customized text or an existing attribute name. Then, select the font color, weight, alignment, and size.


Source Define a URL or an attribute image source

Target Link Define a URL which opens when the image is clicked on

Tooltip Text Enter a description which appears when the image is hovered on

Alternative Text Enter an alternative text which appears when the image source cannot be accessed

Card Footer

Select the Enable checkbox to display the card footer as Text or Attribute. Then, select the font color, weight, alignment, and size.
