Windows Secure Deployment

A secure deployment is strongly recommended. In a secure deployment scenario, you add HTTPS/TLS support to the Library application. The server processes will remain on the same machine, but will communicate with each other through a secure channel.

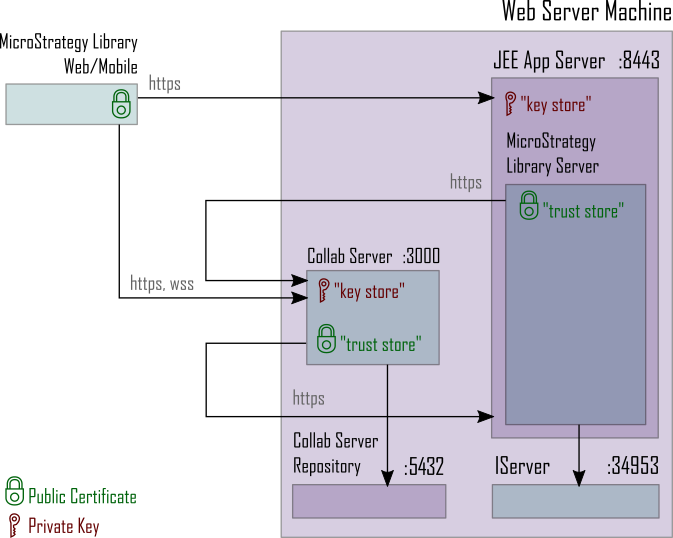

The following diagram shows the secure deployment:

Perform the following procedure to enable secure communication between the Library applications and services on a Windows server. These instructions assume that a default deployment has already been completed, and Intelligence server has already been TLS enabled.

Prepare Files for Secure Deployment

Contact your system administrator to obtain the following files and information:

• A “key store” file in PKCS12 or PFX format which contains the private key and the public certificate for this machine. In the example this file is saved as keystore.pfx

  Use this same file for both Collaboration server and Tomcat.

  The Collaboration server only supports PKCS12 or PFX format.

• The passphrase used to create the key store file.

  The passphrase is needed to read the contents of the key store. In the example, the passphrase is "keystore_password".

• If the server certificate is not signed by a public certificate authority, then collect the Root CA certificate in the chain. The 'certificate' file allows Collaboration server to open a secure connection to the Library server.
• A “trust store” file (that can be created from the certificates) and the passphrase used.

  The trust store file is used by the Library server to open a secure connection to the Collaboration server.

  This is only required if the certificate is not signed by a public certificate authority.

  In the example, the file is saved as truststore.pfx and the passphrase is "truststore_password".

Copy the files obtained in step 1 into the following directory:

C:\Program Files (x86)\MicroStrategy\Collaboration Server

Set Up Secure JEE App Server

Configure Tomcat to use HTTPS to configure Tomcat to be a secure endpoint:

1. Open the following directory:

   <TOMCAT_INSTALL_DIRECTORY>\conf

2. Open the server.xml file with a text editor.

3. Look for the Connector element whose port is 8443. Ensure it is not commented out. If Connector doesn't exist, add it.

4. Edit the 'keystoreFile' and 'keystorePass' attributes of this element.

   Copy

   <Connector
       protocol="org.apache.coyote.http11.Http11NioProtocol"
       port="8443"
       maxThreads="200"
       scheme="https"
       secure="true"
       SSLEnabled="true">
       <SSLHostConfig certificateVerification="none" sslProtocol="TLS">
           <Certificate certificateKeystorePassword="<keystore_passphrase>" certificateKeystoreFile="C:\Program Files (x86)\MicroStrategy\Collaboration Server\keystore.pfx"/>
       </SSLHostConfig>
   </Connector>

5. Save and close the file.

You can refer to more detailed instruction from Tomcat documentation.

Set Up Secure MicroStrategy Library Server

Modify the MicroStrategy Library server settings to open a secure connection to the Collaboration server:

1. Navigate to the following directory:

   <TOMCAT_INSTALL_DIRECTORY>\webapps\MicroStrategyLibrary\WEB-INF\classes\config

2. Edit configOverride.properties file:

   Copy

   services.collaboration.baseURL=https://<FQDN>:3000
   // set tlsEnabled to true only when the certificate is not assigned by a public certificate authority
   services.collaboration.tlsEnabled=true
   trustStore.path=\WEB-INF\truststore.pfx
   trustStore.passphrase=<truststore_password>

   All parameters are case sensitive. Read the instructions in MicroStrategy Library Server Configuration Properties for more information.

3. Save and close the file.

4. Restart Tomcat Server.

5. Verify that the MicroStrategy Library server is running:

   • Open a web browser and enter https://FQDN:8443/MicroStrategyLibrary

   • If you see login page, then MicroStrategy Library server is working.

Set Up Secure Collaboration Server

Modify the Collaboration server settings:

1. Edit the config.json file located in:

   C:\Program Files (x86)\MicroStrategy\Collaboration Server

2. Insert the following lines into the file. These reference the security artifacts we created earlier.

   Copy

   "enableTls": true,
   "keystoreFile": "C:/Program Files (x86)/MicroStrategy/Collaboration Server/keystore.pfx",
   "passphrase": "<keystore_passphrase>",
   "trustedCerts": [ "C:/Program Files (x86)/MicroStrategy/Collaboration Server/certificate.pem" ]

   All parameters are case sensitive. Read the instructions inCollaboration Server Configuration Properties for more information.

3. Modify the authorizationServerUrl field in the config.json file to specify “https” , the HTTPS port (8443) and replace “localhost” with the fully qualified domain name (FQDN) for this machine.

   It should look like the following:

   authorizationServerUrl: https://<FQDN>:8443/MicroStrategyLibrary/api

4. Make sure the file is still valid JSON. Copy the text into an Internet JSON validator to verify.

5. Save the file.

6. Restart the Collaboration server.

7. Verify that the Collaboration server is running:

   • Open a web browser and enter https://FQDN:3000/status

   • If you see a web page (with no errors), then Collaboration server is working.
