Use the Elasticsearch Connector

Starting in MicroStrategy ONE Update 12, you can use the Elasticsearch connector as part of the new data import experience. If you are using a version earlier than MicroStrategy ONE Update 12, see Use the Elasticsearch Connector Before MicroStrategy ONE Update 12.

Check out the following topics to get started:

• Configure Parameters for Elasticsearch in Old Data Import
• Import Data from Elasticsearch

Configure Parameters for Elasticsearch in Old Data Import

See MicroStrategy Community Data Connectors to configure the Elasticsearch connector.

Import Data from Elasticsearch

Once you configure the required parameters, you can start importing data. This feature is only available when the new data import experience is enabled.

1. Log in to MicroStrategy Library Web.
2. Go to the Data Import home page.

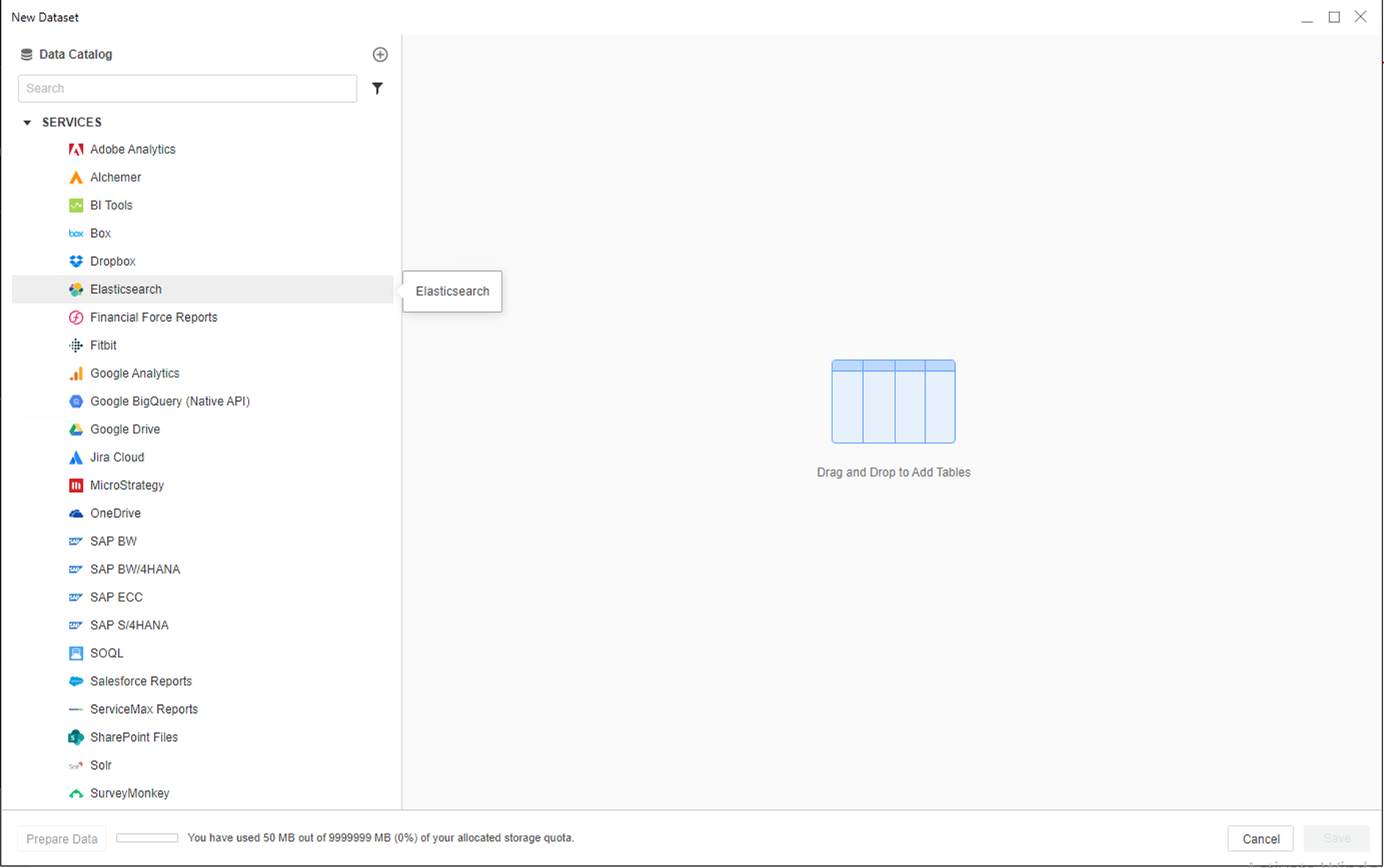

3. Choose Elasticsearch from the Services drop-down.

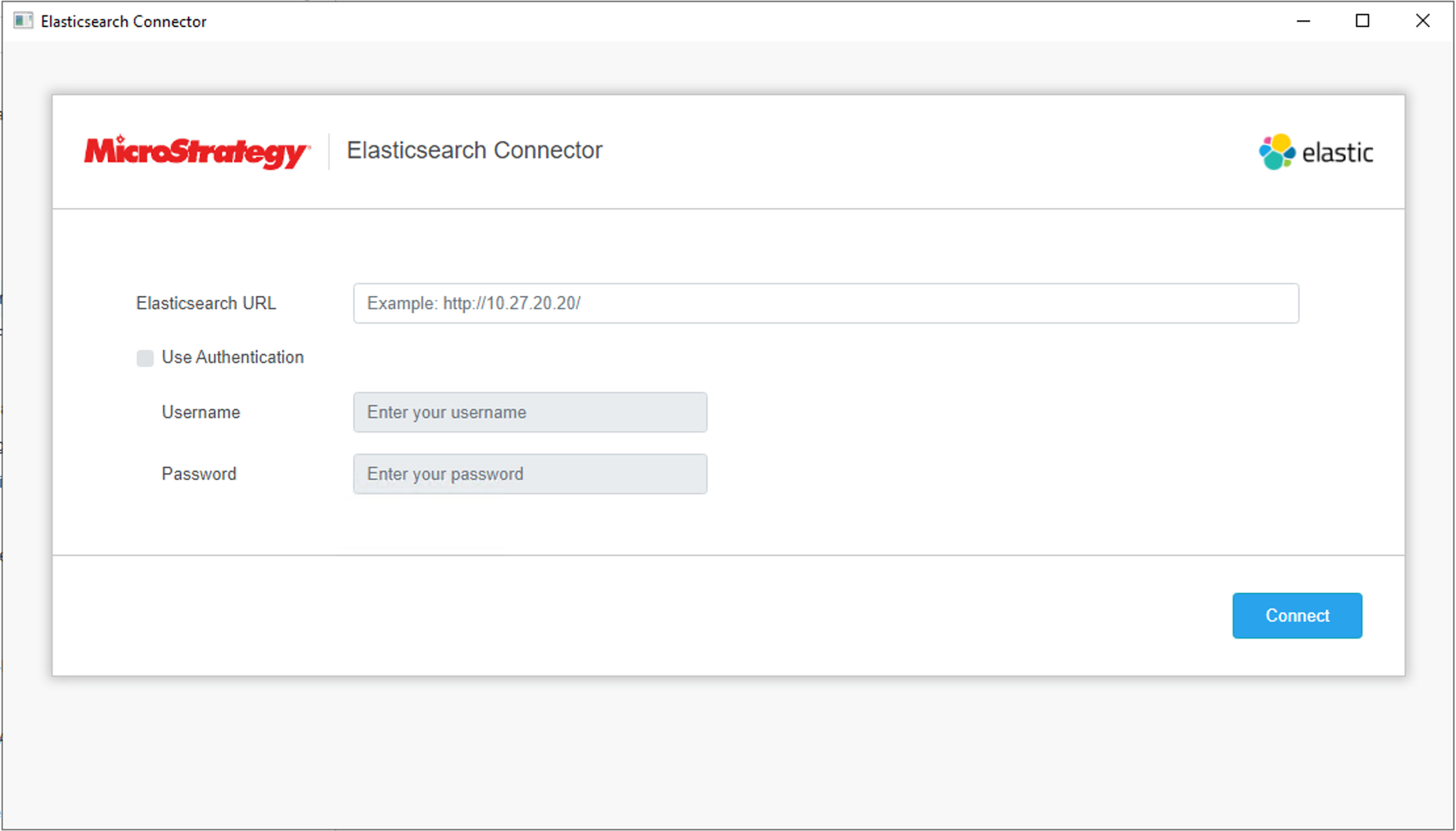

4. Enter your Elasticsearch URL and click Connect.

If your Domain requires authentication, select the Use Authentication checkbox and enter your Username and Password.

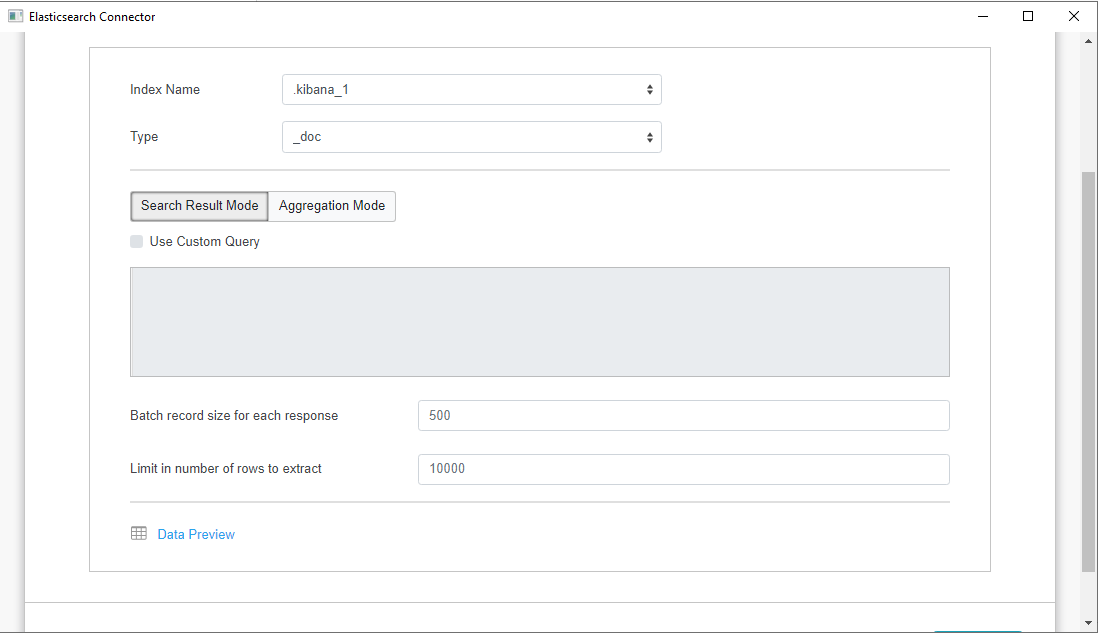

5. In Parameters, choose the Index to import.

Identify the Type of index you selected in the Index Name field. Additionally, you can select the Use Custom Query checkbox and enter an Elasticsearch compatible query.

6. Click Submit.



7. If necessary, click Prepare Data to view the sample data and adjust column types.
8. Publish the cube to MicroStrategy.

Use the Elasticsearch Connector Before MicroStrategy Update 12

To use this connector with MicroStrategy Web, your administrator must perform the steps detailed in the MicroStrategy Community Data Connectors topic of the MicroStrategy Web Administration Help.

1. Open a new or existing dashboard.
2. Choose Add Data > New Data.
3. Click the Elasticsearch connector icon from the data source list.

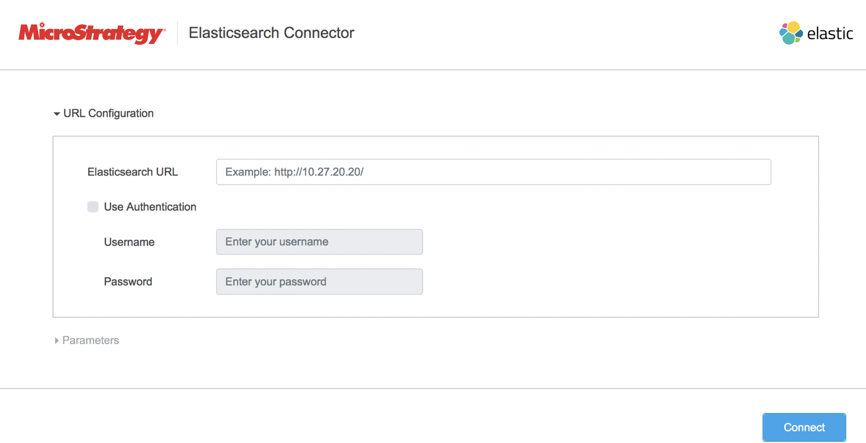

4. Enter your Elasticsearch URL. If your Domain requires authentication, select the Use Authentication checkbox and enter your Username and Password.



5. Click Connect. The Parameters section expands.

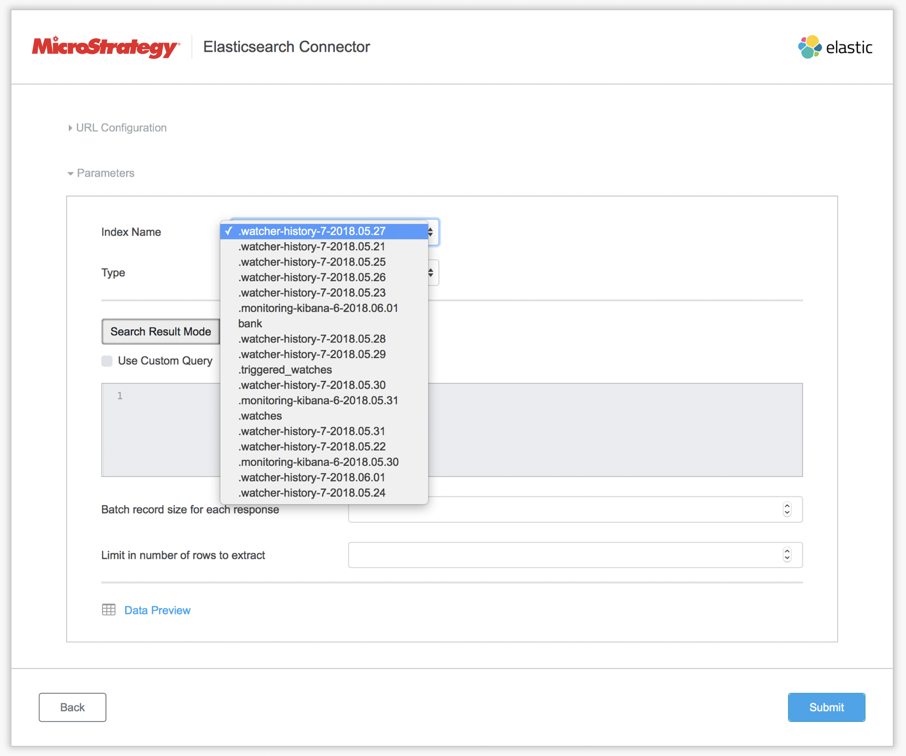

6. Select the index you want to import.

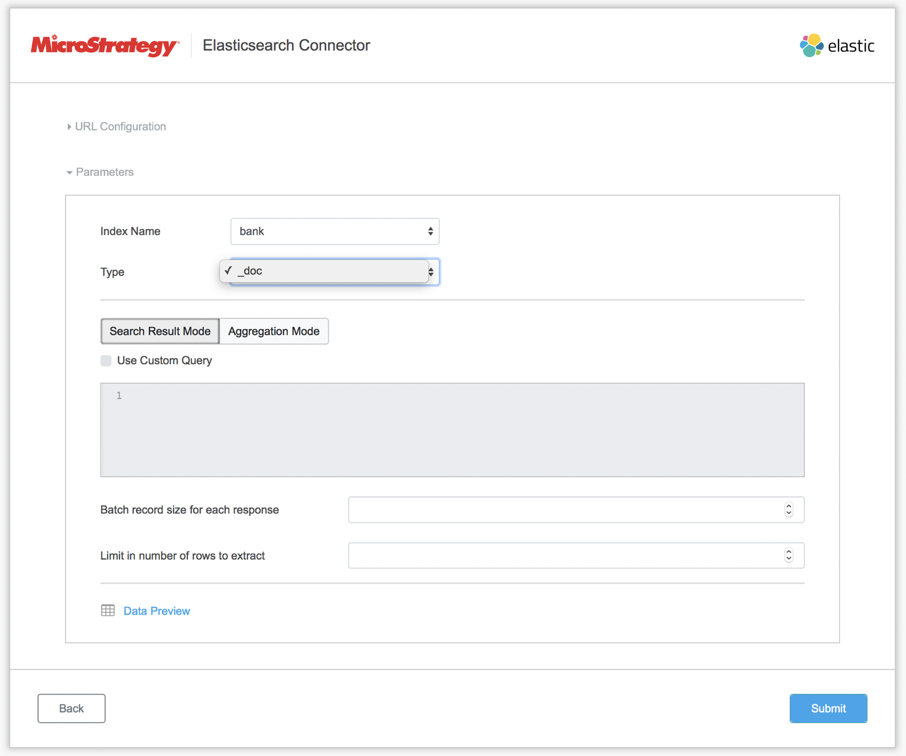

7. Identify the Type of index you selected in the Index Name field.

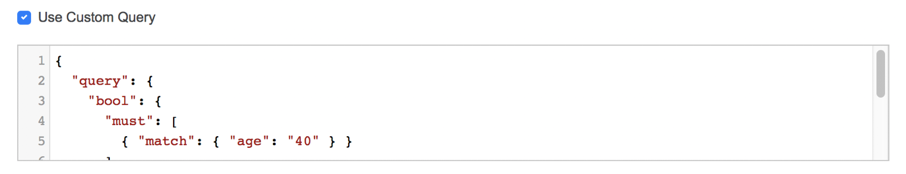

8. To make a different query, select the Use Custom Query checkbox and enter an Elasticsearch compatible query.

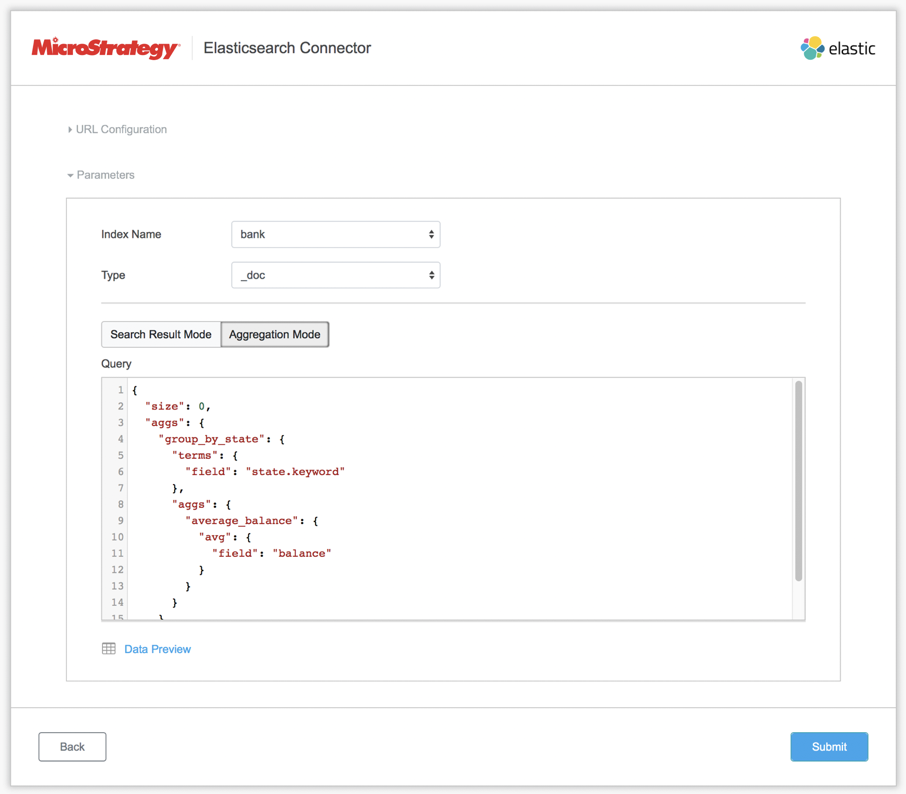

9. You can also use Aggregation Mode for the Elasticsearch compatible queries.

   The aggregation is done inside the Elasticsearch Domain, so you just have to enter a correct aggregation query.

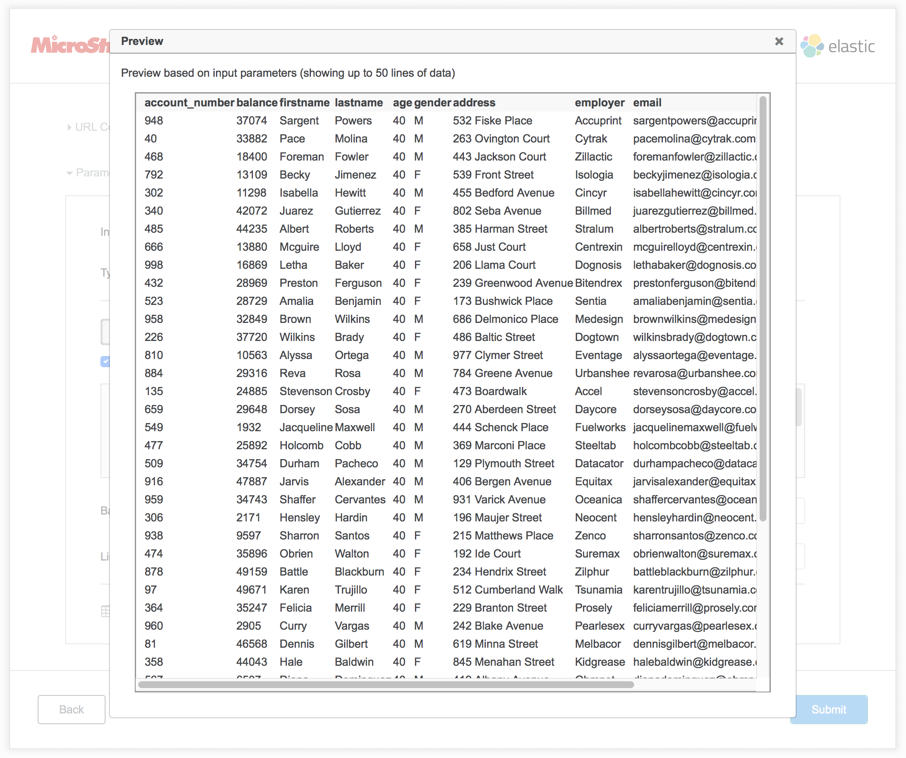

10. Click Submit. A preview of your imported data appears.

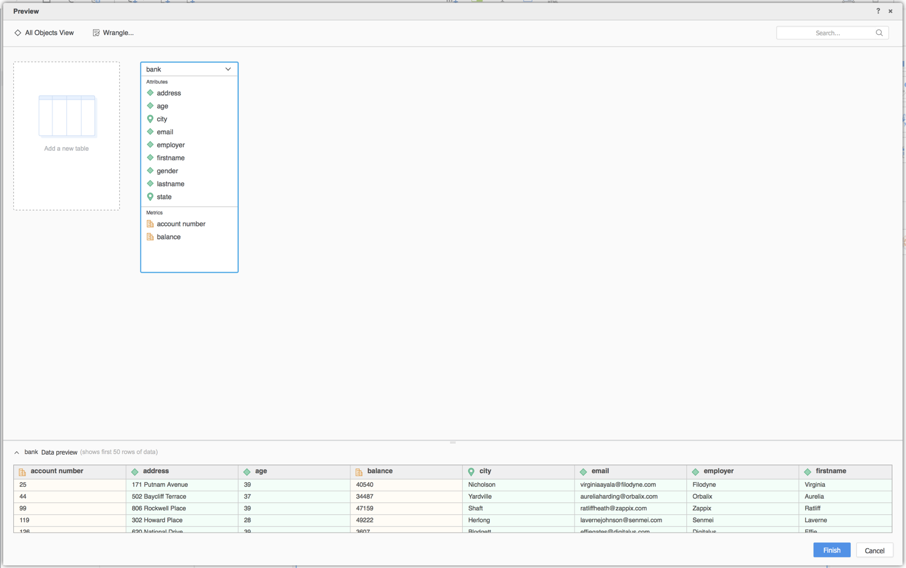

11. On the Preview dialog, wrangle your data and click Finish.
