Understanding the Parts of a Document

A sample document is displayed below in Presentation Mode:

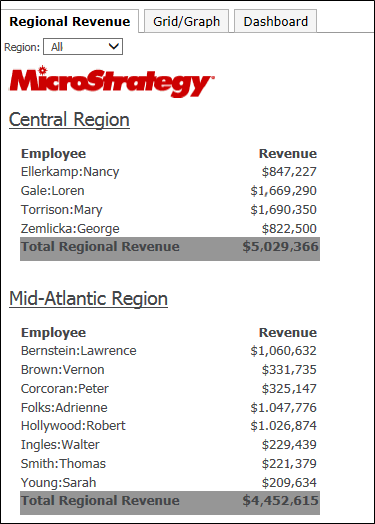

Sample document

Displaying Data in the Document

Most of the information on a document is from an underlying dataset. A dataset is a set of data that can be displayed on a document. A dataset can be a MicroStrategy report, a MicroStrategy Intelligent Cube, or data imported directly from an external data source. Reports include Freeform SQL reports, Query Builder reports, MDX cube reports, and reports that access Intelligent Cubes. Intelligent Cubes can be based on MicroStrategy data or imported data. The information in a dataset can include MicroStrategy objects such as attributes, custom groups, consolidations, and metrics.

In the document sample above, the employee names and the revenue amounts are retrieved from the dataset. As an analyst, you do not see the underlying datasets that provide the data; you see the data itself instead.

Other information that does not originate from the dataset is stored in the document's definition. In the document sample above, for instance, the words "Employee" and "Revenue", as well as the MicroStrategy company logo, are not part of the dataset.

How Metrics Are Calculated in a Document

Metrics are MicroStrategy objects that represent business measures and key performance indicators. From a practical perspective, metrics are the calculations that are performed on data stored in your data source, the results of which are displayed on a dashboard. Metrics are similar to formulas in spreadsheet software.

A metric is calculated differently depending on its location in the document. For example, the Revenue metric next to each employee is calculated at the level of the employee. The same Revenue metric next to the text "Total Regional Revenue" calculates all the revenue for the specific region.

The end of the sample document was not included in the previous image; below you can see the total revenue for the entire document. The same Revenue metric was used, but because of its location in the document it calculates as a grand total.

Metric grand total

Opening a Web Page: Hyperlinks

A hyperlink connects text or an image in a document to a web page (the target of the hyperlink). When you hover the cursor over text that contains a hyperlink, the cursor changes to a hand.

Sample hyperlink to a web page

Click the hyperlinked text to open the target (in this example, the website www.example.com) in another window.

Grouping Documents to Create Pages of Data

If a document is organized so that the data is grouped by page, drop-down lists are displayed at the top of the screen, as shown in the portion of the sample document displayed below. You can select which elements, or subsets of data, to display. Each subset of data is called a page. The document sample above displays all regions.

All regions displayed for your selection

Pages result from a document designer creating groups on the document. Grouping information together helps people who read the document to understand the data better. For a more detailed explanation and more examples, see Grouping Documents: Page-By.

Layouts

A multi-layout document contains multiple documents, each in its own layout, creating a "book" of documents. Each layout functions as a separate document, with its own grouping, page setup, and so on, but the layouts are generated into a single PDF document. If a document contains multiple layouts, tabs are displayed at the top of the screen. Click a tab to select which layout to display.

The sample document above displays the Regional Revenue layout. Click the Grid/Graph tab, and that layout is now displayed, as shown below.

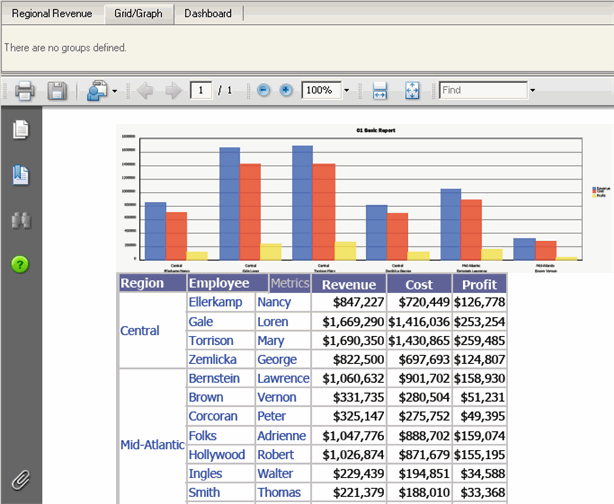

Grid and graph on Grid/Graph layout tab

When you export a multi-layout document to Excel, each layout is placed into a separate worksheet of the spreadsheet. When you export a multi-layout document to a PDF file, each layout starts on a new page. For steps, see Export a Document.

Displaying Reports on Documents: Grid/Graphs

A Grid/Graph is the object used to display MicroStrategy reports on documents. Like a report, a Grid/Graph can be displayed as a grid, a graph, or both:

Grid: displays as a standard MicroStrategy grid with rows and columns of attributes and metrics, as shown below.

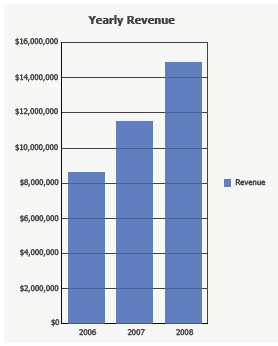

Graph: displays the data visually like a standard MicroStrategy graph. The same Grid/Graph is shown below as in graph view.

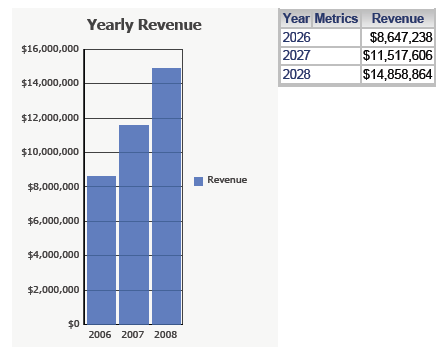

Grid and Graph: displays both grid and graph views simultaneously. The same Grid/Graph is shown below in Grid and Graph view.

A Grid/Graph is usually referred to as "grid" or "graph", depending on its display state, throughout the documentation.

The data on the grid or graph comes from a dataset report, just as the attribute or metric data comes from a dataset report.

If the data in the dataset report changes (for example, new employees are added to the data warehouse), the data in the grid or graph on the document changes. However, changes, such as formatting the employee names, made to the MicroStrategy report are not propagated to the grid or graph in the document. If an object, such as the Employee attribute, is removed from the MicroStrategy report, it cannot be displayed in the grid or graph in the document.

A special type of Grid/Graph, a shortcut, is linked to the MicroStrategy report. Grid/Graph shortcuts do reflect changes made to the MicroStrategy report.
