Use the SAP ECC Connector to Import Data

Once you've authenticated and connected to SAP ECC, you can import data from a SAP ECC CDS View into MicroStrategy.

The SAP ECC connector does not support live connect mode.

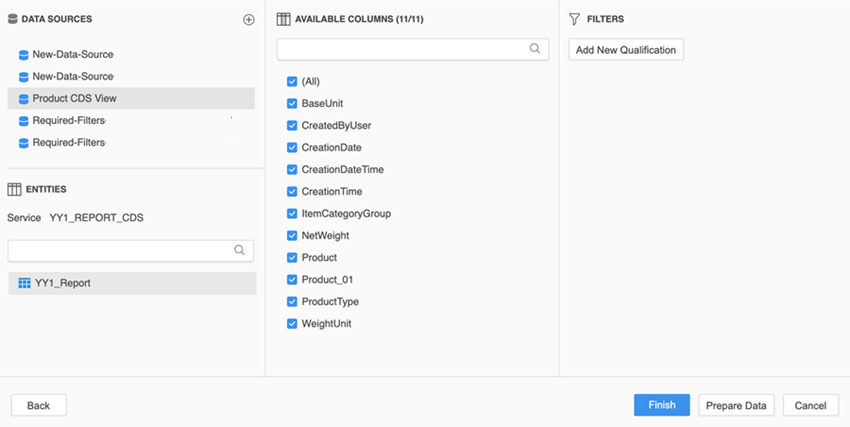

  1. Under Data Sources, click on a connection.

    The tables of your selected connection are displayed under Entities.

  2. Use the Service Catalog to select from a list of services. Learn how to access the Service Catalog.

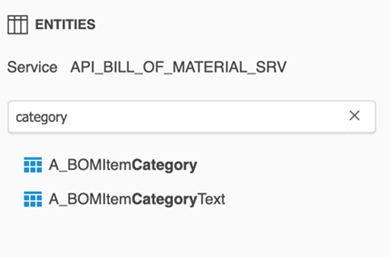

  3. In the Entities search box, type in a table name to search for a specific table.

    Entity sets are treated as tables and appear in the Entities pane.

  4. Select a table.

    When a table is selected, all of its columns are selected by default.

  5. Under Available Columns, use the search box to search for a specific column.

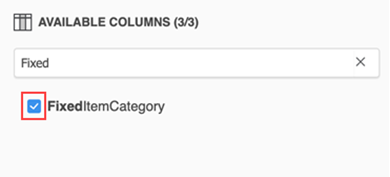

  6. Select the checkbox next to the column you want to import. You can select multiple columns.

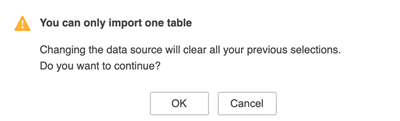

    If you select a different data source or table, the connector throws the following warning and your selections are cleared.

    .

  7. You can add filters by clicking Add New Qualification. Learn how to create a filter qualification.

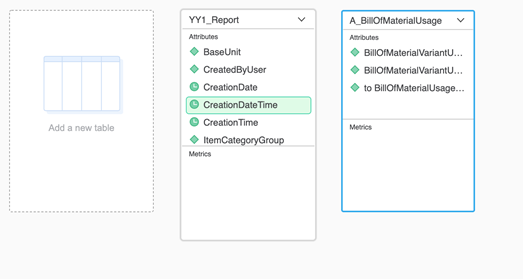

  8. You can add multiple tables to your data import.

    1. Click Prepare Data.
    2. In the Preview dialog, click Add a new table.
    3. Select a data source. For example, the SAP ECC connector.

    4. Select a table, columns, and add filters and click Add. You can see the added data in the Preview dialog.


  9. Click Finish.
  10. In the Save As dialog, select a location and enter a name.
  11. Click Save.

You can use your published cube to create a dashboard, document, or report.

The following ECC queries are supported:

  • Queries with variables
  • Queries with Top N and Bottom N

Queries with Replacement Path variables are not supported.
