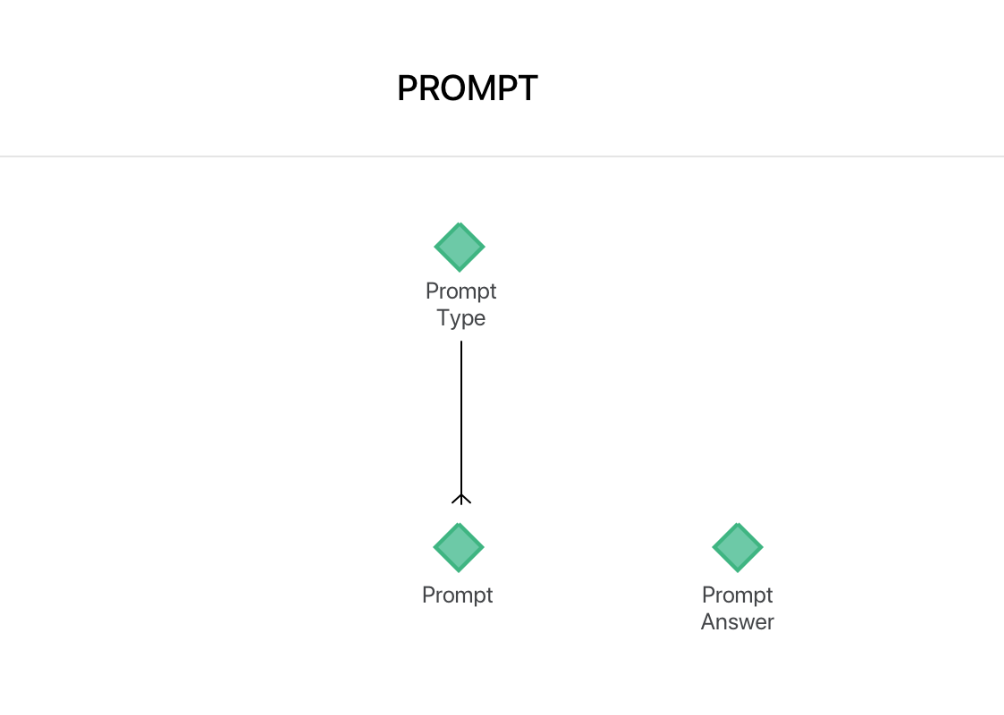

Prompt Hierarchy

Prompts are tracked as part of the Object hierarchy as well as separate attributes in order to analyze prompt answers, which are embedded in an object.

lu_prompt

The lu_prompt table contains the distinct prompt objects stored in the metadata for a specific project.

Each prompt has a unique GUID and is defined at the Project level.

Column	Description	Data-Type
prompt_id	The auto-generated numeric ID for the prompt. This column is the source of the prompt attribute.	bigint(20)
prompt_guid	The GUID of the prompt object in the metadata.	varchar(32)
prompt_name	The name of the prompt stored in the metadata.	varchar(255)
prompt_desc	The detailed description of the prompt.	varchar(512)
prompt_location	The navigation path to the prompt in the project. For example: Platform Analytics/Public Objects/Prompts/System Prompts	longtext
prompt_status	The numeric ID of the current status of the prompt. The status can continue to update if the prompt is modified. The status can be: Visible Hidden Deleted	varchar(25)
creation_timestamp	The UTC timestamp for when the prompt was first created.	datetime
modification_timestamp	The latest UTC timestamp for when the prompt was last modified. The timestamp will continue to update as the prompt is modified.	datetime
prompt_type_id	The fixed numeric ID of the Prompt Type. Prompt Type includes: Attribute Element Prompt Embedded Prompt Level Prompt Object Prompt Prompt- includes, attribute hierarchy prompts, attribute qualification prompts, and metric qualification prompts Value Prompt This column is the source of the Prompt Type attribute.	smallint(6)
project_id	The numeric ID of the corresponding project.	bigint(20)
owner_id	The numeric ID of the corresponding prompt object owner. This column is not mapped to an attribute in the schema.	bigint(20)
prompt_version	The version ID of the prompt.	varchar(32)
required	The flag used to track if the prompt must be required. The value can be: Not Applicable N Y	varchar(41)

lu_prompt_type

The Prompt Type for a specific Prompt stored in the metadata(s) being monitored. This attribute provides groupings of the prompts. The data in this table is static and predefined.

Attribute hierarchy prompts, attribute qualification prompts, and metric qualification prompts cannot be differentiated as different prompt types. They are grouped to a default Prompt Type.

Column	Description	Data-Type
prompt_type_id	The fixed numeric ID of the Prompt Type. This is the source column of the Prompt Type attribute.	smallint(6)
prompt_type_desc	Prompt Type elements include: Attribute Element Prompt Embedded Prompt Level Prompt Object Prompt Prompt- includes, attribute hierarchy prompts, attribute qualification prompts, and metric qualification prompts Value Prompt	varchar(255)

Column

Description

Data-Type

prompt_type_id

The fixed numeric ID of the Prompt Type. This is the source column of the Prompt Type attribute.

smallint(6)

prompt_type_desc

Prompt Type elements include:

Attribute Element Prompt

Embedded Prompt

Level Prompt

Object Prompt

Prompt- includes, attribute hierarchy prompts, attribute qualification prompts, and metric qualification prompts

Value Prompt

varchar(255)

fact_prompt_answers

This fact table stores the Prompt Answer for each prompt during an execution. During execution, each time a prompt is answered, a new record is added into this table. If the user does not answer a prompt selection, the prompt answer is recorded as null.

Example report:

Attributes: Object, Prompt, Prompt Answer
Metric: Count (action)

This report indicates the number of times a specific prompt linked to an object (report, document, or dashboard) has been answered with a particular response.

The fact_prompt_answers table is the source for two facts:

Prompt Actions: Records the unique tran_id (actions) recorded in the fact_prompt_answers table.
Prompt Answer Sequence: Records the order in which the Prompt Answers are applied.

Column	Description	Data-Type
parent_tran_id	Auto-generated numeric transaction ID. This is the source column for the Parent Action attribute. Action is the lowest level that is defined in the Platform Analytics project schema. Parent Action is used to group by multiple Actions sharing the same job.	bigint(20)
prompt_id	The auto-generated numeric ID for the prompt.	varchar(255)
prompt_order_id	The source for Prompt Order fact. Indicates in what order a user answered a series of prompts in a prompted object.	smallint(6)
prompt_answer	The prompt answer chosen by the user. The prompt answer can include a metric value, an object, an attribute list, custom text, etc. This is the source column of the Prompt Answer attribute.	varchar(2048)
