MicroStrategy ONE

Reusable Dashboard Themes

Starting in MicroStrategy ONE Update 10, Application Architects can define reusable dashboard themes when creating new dashboards in Workstation. This includes default font type, size, color palette on grids/graphs, and fill color among other formatting properties in different visualizations and component types. Users can apply a theme by a simply clicking to change the look and feel of their dashboards. This is much easier and efficient than changing the formatting in each visualization.

Check out the topics linked below to get started:

Apply a Theme to Your Dashboard

  1. Edit a dashboard.

  2. Choose Format > Select Theme.

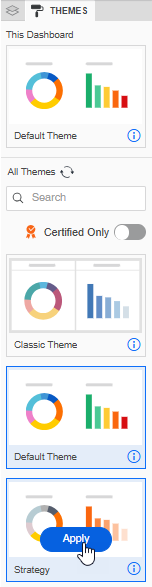

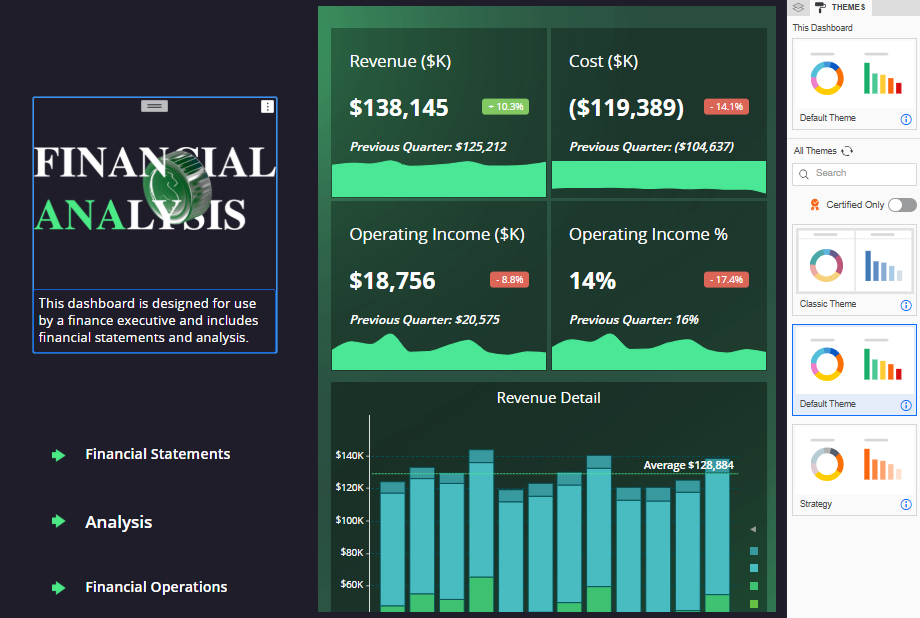

  3. In the Themes panel, search for your theme.

  4. Hover over your theme and click Apply.

Supported Visualizations, Components, and Format Properties

This section describes the supported visualizations, components, and format properties for themes.

Supported Visualizations

  • Grid

  • Graph

    • Bar

    • Line

    • Area

    • Combo

    • Bubble

    • Pie

  • KPI

  • Multi-Metric KPI

  • Comparison KPI

  • Gauge

  • Geospatial Service

  • Map

  • Heatmap

  • Waterfall

  • Box Plot

  • Network

  • Histogram

  • Sankey

  • Time Series

Supported Components

  • Filter

  • Text

  • Image

  • HTML Container

  • Shape

  • Panel Stack

Supported Format Properties

All supported format properties can be saved in the theme.

The following properties from the dashboard level are supported:

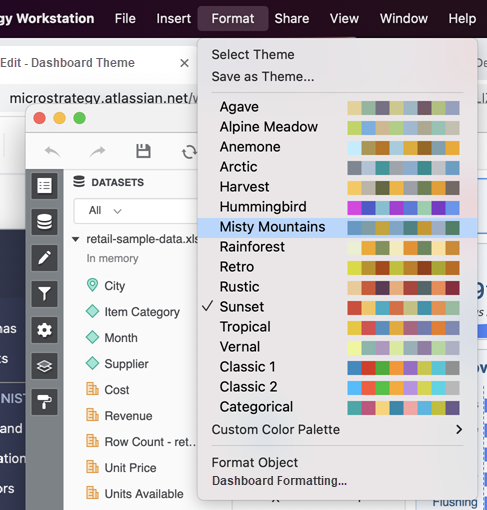

  • Dashboard color palette

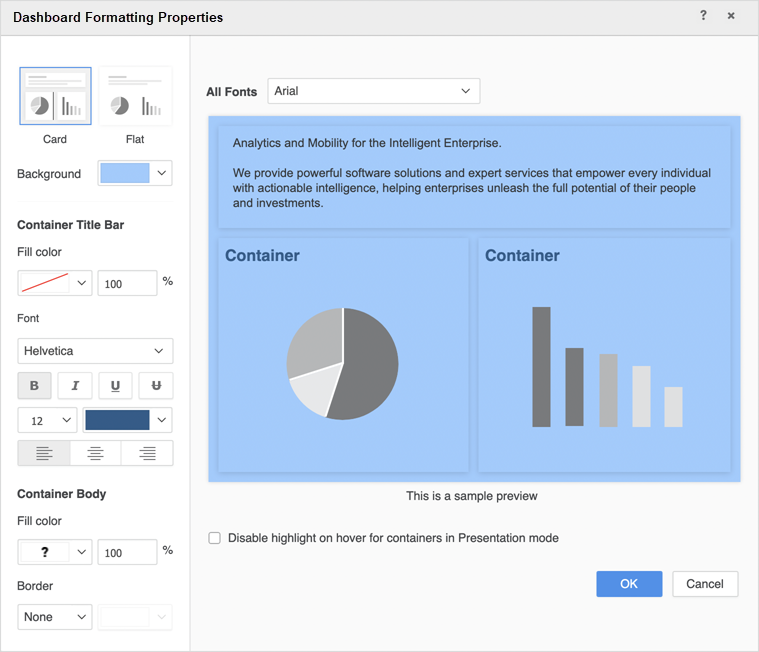

  • Dashboard layout and background color in Format > Dashboard Formatting.

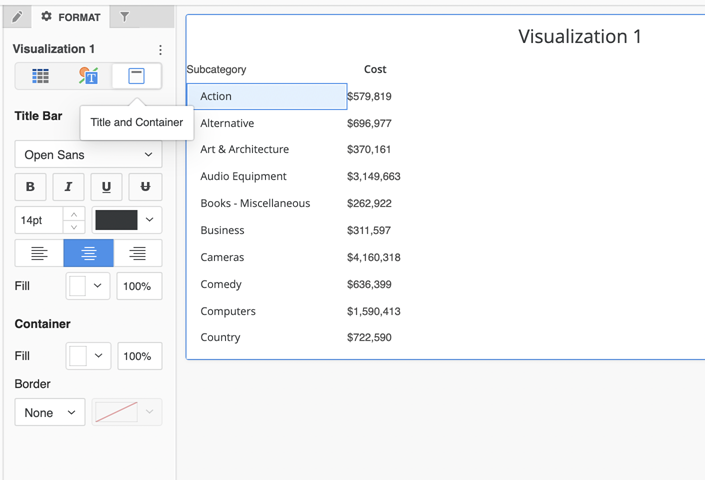

All properties in Title and Container on the Format panel for visualizations and components are supported, except the on/off status of the title bar.

The majority of the properties in Text and Form on the Format panel for visualizations and components are supported. Some properties that are strongly data dependent are not supported, such as Reference Line, Trend line, and Color By in graphs. Some properties that determine an on/off status and are not format related are not supported, such as the on/off toggle for Data Labels.

Properties in Visualization Options on the Format panel are not supported.

Related Topics

KB486031: Theme-Related Problems When Uploading .mstr Files
