Customize the Login Process for Android

Library Mobile SDK for Android login APIs allow you to insert custom logic at different points during the login process and pass custom login parameters in login requests.

Before you get started, set up the environment so that you can use the MicroStrategy Library Mobile project as the base for your customization.

Add Custom Logic to the Login Process

You can add custom logic to the login process by implementing the LoginListener interface, whose methods you call during the login process. Here are the methods of the com.microstrategy.android.infrastructure.login.LoginListener interface.

To enable custom logic, the implemented LoginListener class needs to be set using the following LoginCustomization method:

In addition, the following variables are available in the LoginCustomization instance to determine whether to show or hide login dialogs:

Implement your customized login process

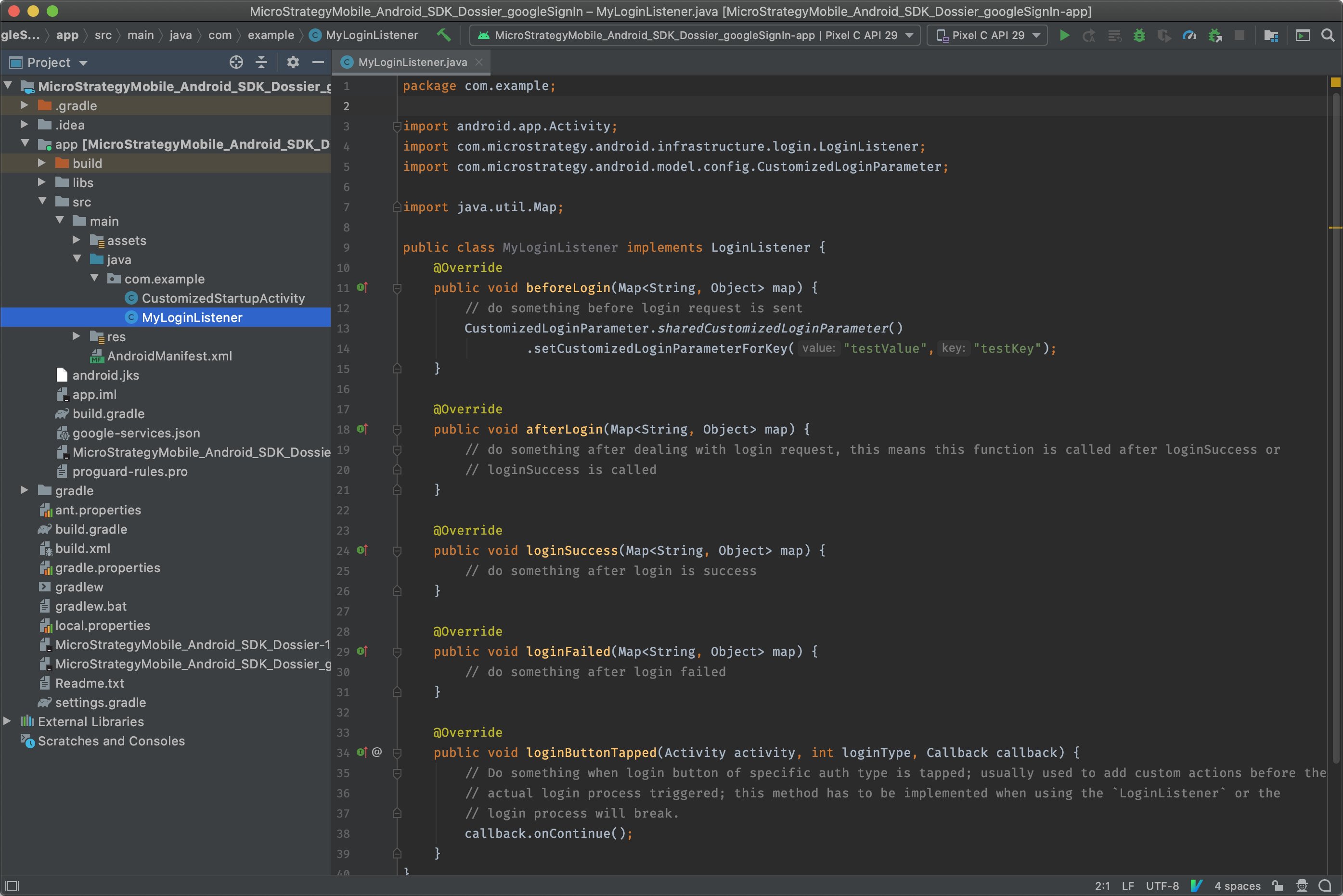

1. Create a new Java class that implements LoginListener. The following code snippet shows an example for a class named MyLoginListener:
Copy

public class MyLoginListener implements LoginListener {
    @Override
    public void beforeLogin(Map<String, Object> info) {
        // do something before login request is sent
    }

    @Override
    public void afterLogin(Map<String, Object> info) {
        // do something after dealing with login request, this means this function is called after loginSuccess or loginSuccess is called
    }

    @Override
    public void loginSuccess(Map<String, Object> info) {
        // do something after login is success
    }

    @Override
    public void loginFailed(Map<String, Object> info) {
        // do something after login failed
    }

    @Override
    public void loginButtonTapped(Activity activity, int loginType, Callback callback) {
        // Do something when login button of specific auth type is tapped; usually used to add custom actions before the
        // actual login process triggered; this method has to be implemented when using the `LoginListener` or the
        // login process will break.
        callback.onContinue();
    }
}

2. Implement AppDelegate according to Customize the App Lifecycle for Android.
3. Navigate to the customized AppDelegate created in the previous step. Create a listener object from the class created in the first step. Set the listener object to LoginCustomization in the onApplicationWillFinishLaunchingWithIntent(…) function using LoginCustomization.setLoginListener(…).
Copy

...
    @Override
    public void onApplicationWillFinishLaunchingWithIntent(Intent intent) {
        ...
        MyLoginListener myLoginListener = new MyLoginListener();
        LoginCustomization.getInstance().setLoginListener(myLoginListener);
        ...
    }
...

Pass Custom Login Parameters

You can pass custom information in a login request for authentication purposes. Custom HTTP request parameters and custom HTTP headers can be provided in any request made from the client to the Library sever, while custom login parameters are only included in the authentication request body before being sent to the server. These custom request parameters can be defined and manipulated via the CustomizedLoginParameter util singleton class.

The following methods are exposed via the com.microstrategy.android.model.config.CustomizedLoginParameter class, relating to the custom request parameters:

Examples for Passing Custom Login Parameters

Use the CustomizedLoginParameter singleton instance anywhere you want to store or update custom login parameters in your project.

CustomizedLoginParameter.sharedCustomizedLoginParameter().setCustomizedLoginParameterForKey("testValue","testKey");

You can add an extra custom login parameter just before the login request is sent in MyLoginListener, which you created in Add Custom Logic to the Login Process.
