Strategy ONE

Create a Dashboard Page From an Image

Starting in Strategy One (September 2025), you can upload a picture of a dashboard and ask Auto Dashboard to make a page similar to it. The picture can be a screenshot of an existing dashboard, a sketch, or any visual representation of your desired layout. Supported image file types include:

  • JPEG

  • JPG

  • PNG

  • WebP

Create a Dashboard From an Image Using Auto Dashboard

  1. In Library, create a new dashboard or edit an existing dashboard.
    • To edit an existing dashboard, right-click the dashboard and select Edit.

    The dashboard must contain at least one dataset.

  2. If the Auto Dashboard icon is not displayed in the toolbar, as shown below, enable Auto Dashboard.

  3. If the Auto Dashboard panel is not displayed, click the Auto Dashboard icon in the toolbar.

    The Auto Dashboard panel displays a list of AI-generated content suggestions. The suggestions depend on the attributes and metrics in the dashboard's dataset.

  4. In the Auto Dashboard panel, click the Add Image icon .

  5. Navigate to and select the image to base the dashboard on. The image can be a screenshot of an existing dashboard, a sketch, or any visual representation of your desired layout.

  6. A thumbnail of the image displays in the question box with the command to "Create page from image of dashboard". Click Submit or press Enter.

    For example, this image shows two rows of KPIs over a combination chart.

    The results are shown below. A new page was created matching the image. The Auto Dashboard panel provides a summary of the changes made to the dashboard.

  7. Edit content generated by Auto Dashboard as you would any other content.

    • You can do this manually or by using Auto Dashboard. For example, Auto Dashboard can replace objects in a visualization, change the visualization type, rename objects including pages, delete visualizations or filters, and duplicate a page. For instructions to edit a visualization, see Enhance a Visualization With Auto Dashboard.

  8. To generate more content using Auto Dashboard, select another suggestion or and enter a new query in the Auto Dashboard panel. If the suggestions are not listed, you can view them by expanding the I Think You May Be Looking For section. You can also:

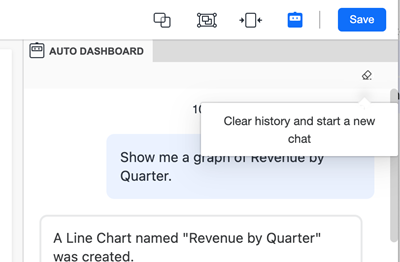

  9. To start a new chat without using previous responses as context, clear the conversation history. Clearing history lets you remove previous inputs so the analysis starts without bias from past sessions. Session history, especially in data-heavy dashboards, can increase load times or make Auto slower. In the Auto Dashboard panel, click Clear History and click Yes.

    Save the Dashboard

  10. Do one of the following:

    • To save the dashboard and continue editing, click Save and select Save.

    • To save the dashboard, exit editing, and view the dashboard, click Save and select Save and View.
