Create a Modern Grid with Microcharts

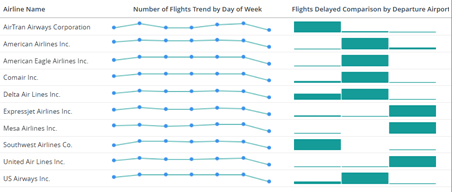

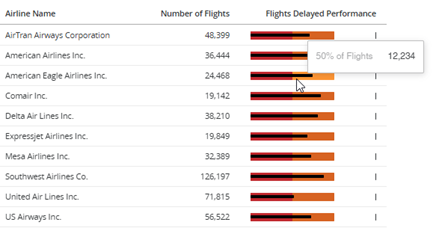

A modern grid visualization allows you to include microcharts within cells. Microcharts are small versions of visualizations shown without labels, that convey information so that a user can, at a glance, determine the trend of a metric over time or how a metric is performing compared to forecasted figures. The modern grid visualization is useful for this purpose because individual microcharts display attribute and metric data in a small graph that would otherwise be displayed as a single value in the grid cell. This visualization supports three microcharts: sparkline, bullet, and trend bar, as well as basic grid functionality.

1. In the top toolbar, click Visualization .

2. Choose Grid > Grid (Modern).

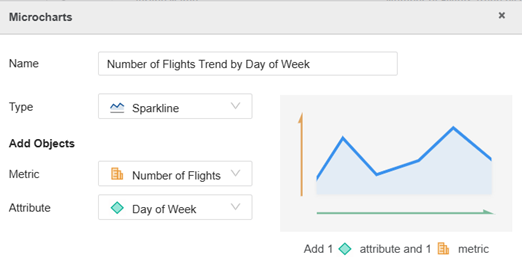

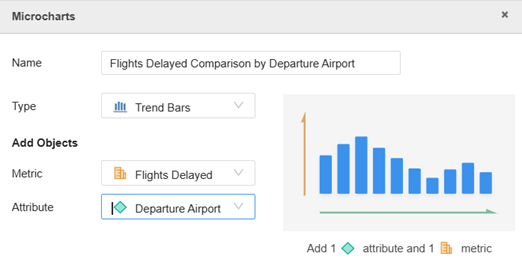

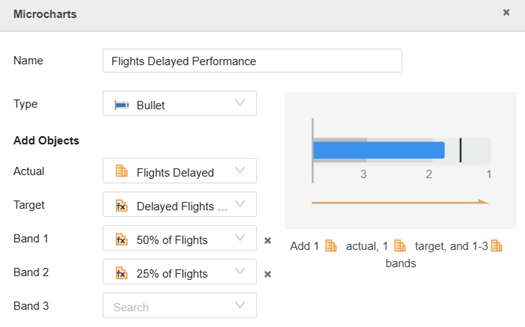

3. In the Editor panel, add your rows, column sets, and microcharts.
