Create a Comparison KPI

Use a Comparison KPI to indicate the progress towards an objective, like sales and goal.

Check out the video below to learn more!

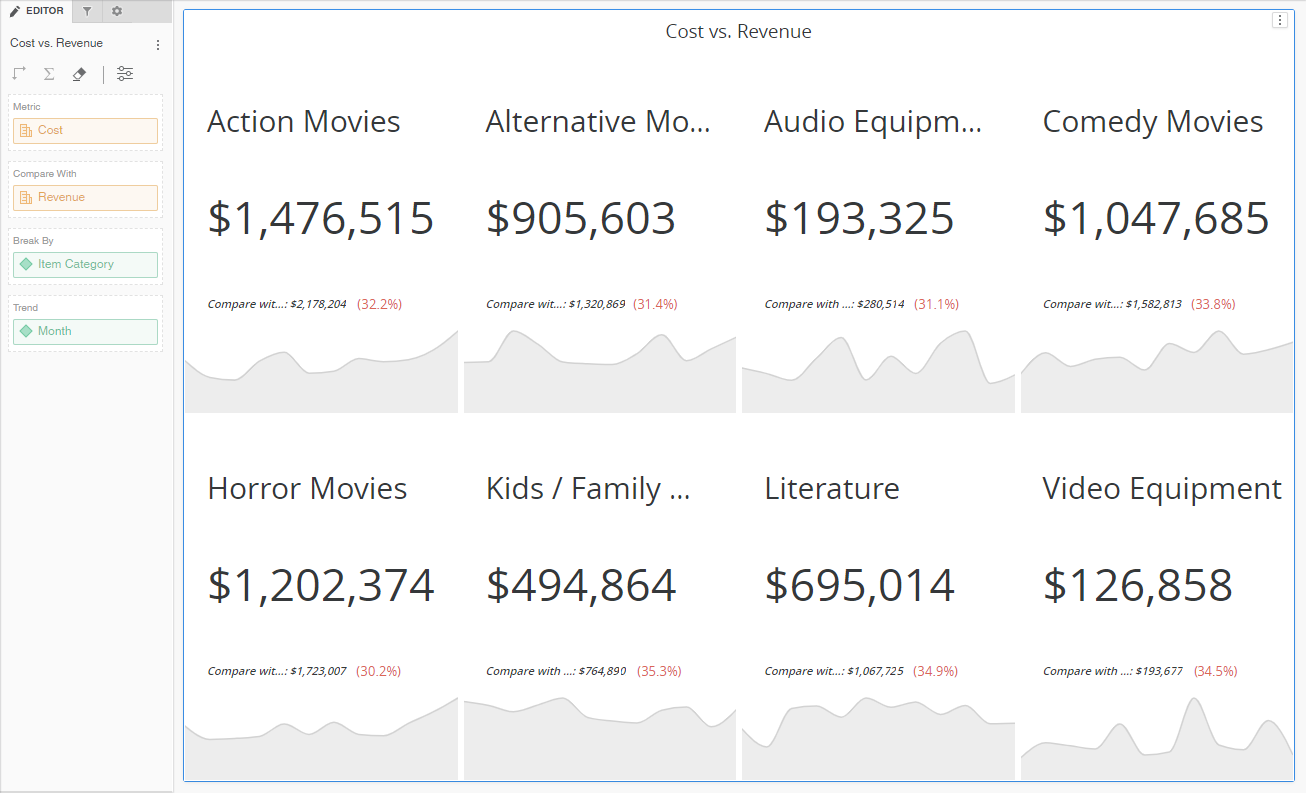

  1. Open a dashboard.

  2. In the top toolbar, click Visualization .

  3. Choose KPI > Comparison KPI .

  4. In the Datasets panel, double-click attributes and metrics to add them to the visualization. A Comparison KPI requires two metrics.

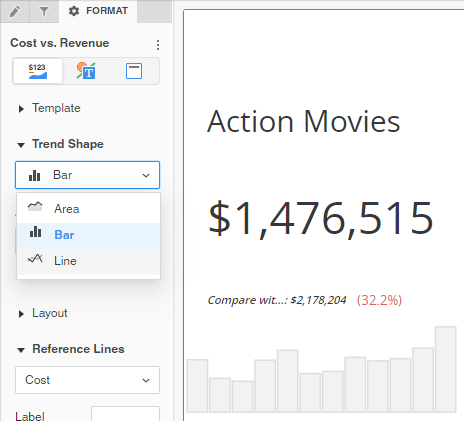

  5. Once you have a Trend attribute, open the Format panel and choose the Trend Shape.

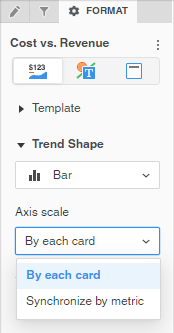

  6. Control the axis by synchronizing by metric or each card.

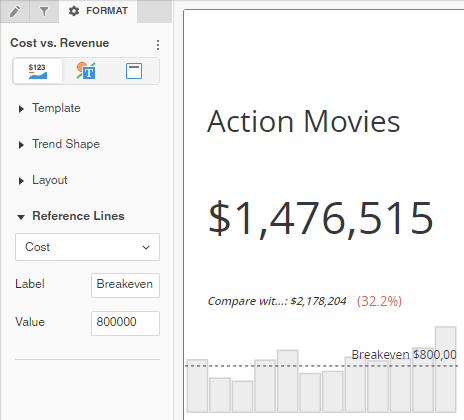

  7. Add a reference line to compare with a constant value.

  8. Format the reference line.

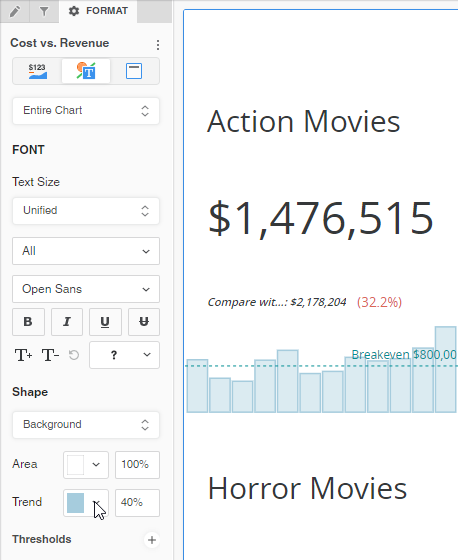

  9. Format the trend color.

  10. In the Editor panel, sort the cards by value from the metric or alphabetically from the attribute.
