Monitoring Interfaces for Manipulating the Results

The final part of the monitoring capability is the ability to act upon the results, which involves the following operations:

• the ability to kill jobs

• the ability to disconnect user connections

• the ability to disconnect database connections

• the ability to perform administrative actions on caches— such as loading, unloading, invalidating, or deleting caches

All of these manipulations are in a single interface, MonitorManipulator, which is accessible from the MonitorSource interface.

• MonitorManipulator

The MonitorManipulator interface has four derived interfaces, each of which has methods to perform actions on the results:

• JobManipulator

• UserConnectionManipulator

• DBConnectionManipulator

• CacheManipulator

If there is a failure in manipulating the monitoring results, a MonitorManipulationException will be thrown.

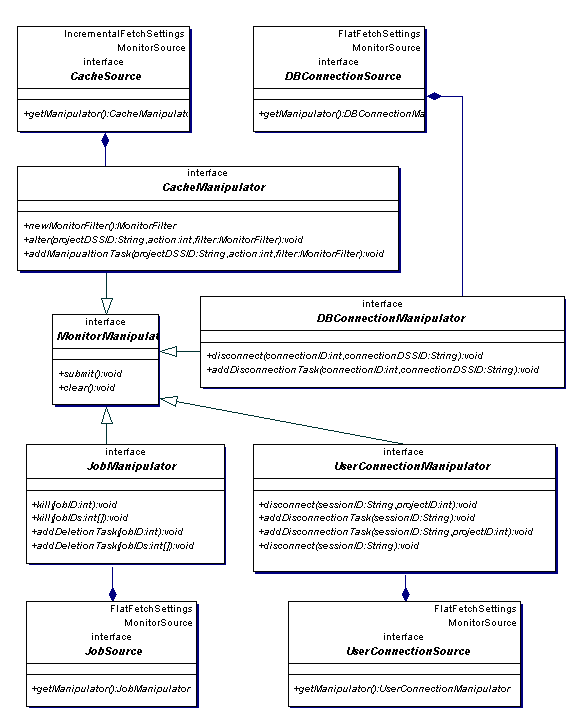

The diagram below illustrates how these interfaces interact with each other.
