MsiChart::Plot Class Reference

#include <Plot.h>

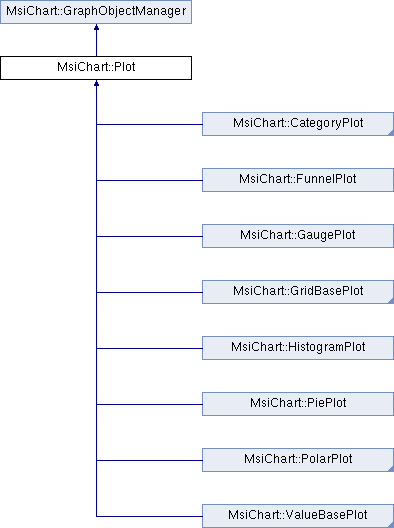

Inheritance diagram for MsiChart::Plot:

Public Types
typedef MSynch::SmartPtr< Plot >	Ptr
Public Types inherited from MsiChart::GraphObjectManager
typedef MSynch::SmartPtr< GraphObjectManager >	Ptr

Public Member Functions
	Plot (const TripleId &irTripleId, GraphObjectManager *ipManager, const Rect2D &irDataArea)
virtual	~Plot ()
virtual void	Draw ()
virtual void	GenerateView ()
virtual void	GenerateImageMap (ImageMap &iorImageMap)
virtual GraphObject::Ptr	OnPointDetection (const Point2D &irCursor) const
virtual void	OnRectangleSelection (const Rect2D &irRect, std::vector< GraphObject::Ptr > &iorSelectedObjects) const
virtual bool	GetToolTipData (Int32 iSeriesID, Int32 iGroupID, double &orValue, double &orPercentValue, Int32 iOffset=0)
virtual bool	GetGroupSpace (std::vector< Int32 > &orVect, Int32 iGroupIndex)
virtual Int32	GetMaxElementRadius ()
virtual void	RefreshValueAxis (const std::map< Int32, std::pair< double, double > > &irScaleSet, const Rect2D &irRect)
virtual bool	GetMaxElementOffsetClippedByBoundary (bool iIsOnXAxis, double &orLowOffset, double &orHighOffset)
virtual bool	GetGMPiePositon (Point2D &orCood, double iXInput, double iYInput, Int32 iXSubIndex=0, Int32 iYSubIndex=0, Int32 iXSectionCount=1, Int32 iYSectionCount=1, Int32 iRadius=2)
virtual void	DrawTrendLinesAndEquations ()
	Draw trendlines and equations. More...
void	GetDataArea (Rect2D &orDataArea) const
void	SetDataArea (const Rect2D &irDataArea)
Dataset::Ptr	GetDataset () const
Legend::Ptr	GetLegend () const
void	SetDataset (Dataset::Ptr iDataSetPtr)
void	SetLegend (Legend::Ptr iLegendPtr)
void	AddSeries (Int32 iSeriesId)
Int32	GetSeriesIndexByID (Int32 iSeriesId) const
void	MoveLabel (TextObject *ipTextObject, const Point2D &irTopRight, const Point2D &irBottomLeft, bool iIsReverse, bool iIsVertical, EnumDSSGraphDataTextPosition iLabelLocation) const
void	AddLegendMarkerToCollection (Int32 iSeriesId, GraphCollectionObject *ipRiserCollection, bool iIsLineCollection=false, bool iIsShownMarker=true, unsigned char iMarkerShape=DssGraphMarkerShapeRectangle, bool iIsShownLine=true, bool iIsLineVertical=false) const
void	CreateTrendLine (const std::vector< double > &irX, const std::vector< double > &irY, const TripleId &irTripleId, GraphObjectManager *ipManager, GraphCollectionObject *ipParentObject, Axis *ipXAxis, Axis *ipYAxis, GraphTrendLineOptions *ipTrendLineOptions, const Rect2D &irDataArea, bool iIsVertical, const Point2D &irDepthOffset, bool iIsY2=false)
void	AdjustTrendLineEquation (Rect2D &irRect, EnumTrendLineIndex iIndex)
void	DrawTrendLinesAndEquations (Rect2D &irClipRect, bool iIsY2=false)
void	DrawPostTrendLineObjects ()
void	GeneratePostTrendLineViews ()
bool	HasTrendLines () const
void	AddTrendLineAnadRefLine (GraphObject::Ptr iLine)
DataLabelManager::Ptr	GetDataLabelManager ()
bool	GetVAMetricIndexDrawn (Int32 iValueMetricIndex)
void	SetVAMetricIndexDrawn (Int32 iValueMetricIndex)
Public Member Functions inherited from MsiChart::GraphObjectManager
	GraphObjectManager (const TripleId &irTripleId, GraphObjectManager *ipManager)
virtual	~GraphObjectManager ()
void	GetTripleId (TripleId &orTripleId) const
virtual GraphObject::Ptr	OnPointDetectionEx (const Point2D &irCursor, const std::vector< Int32 > &irObjectIds, Int32 &iorDistance, Int32 iRadius, std::vector< GraphObject::Ptr > &iorGraphObjectsAround, EnumGraphObjectUsage iUsage=GOU_NORMAL_HIGHLIGHT)
virtual void	OnPointInPolygon (const Point2D &irCursor, const std::vector< Int32 > &irObjectIds, const std::vector< Point2D > &iPoints, std::vector< GraphObject::Ptr > &iorGraphObjectsIn) const
virtual void	GenerateMapAndList ()=0
virtual void	GetOptions (Int32 iSeriesId, Int32 iPropertyId, CComVariant *opValue) const =0
virtual GraphObject::Ptr	GetGraphObject (const TripleId &irTripleId, bool iRecursive=true) const
GraphObjectManager::Ptr	GetGraphObjectManager (const TripleId &irTripleId, bool iRecursive=true) const
void	GetAllGraphObjectInfo (std::vector< CGRect > &iAllGraphObjectsBorder, std::vector< MsiChart::TripleId > &iAllGraphObjectsTripleId)
virtual void	GenerateVirtualMarker ()
ChartContext::Ptr	GetChartContext () const
Int32	GetChartAreaId () const
void	AddToMapAndList (GraphObject::Ptr iGraphObjectPtr)
void	AddToMapAndList (std::vector< GraphObject::Ptr > iGraphObjectPtrList)
void	AddToList (GraphObject::Ptr iGraphObjectPtr)
void	AddToManagerList (GraphObjectManager::Ptr iGraphObjectPtr)
void	AddToMap (GraphObject::Ptr iGraphObjectPtr)
void	InsertGraphObjectListAfterObject (const std::vector< GraphObject::Ptr > &irGraphObjectList, const GraphObject *ipGraphObject)
virtual void	GenerateInterpolationFrame (double iProgress, LayerObject *ipLayerObject)
void	MergeObjectList (GraphObjectManager *ipGraphObjectManager, bool iIsAppend)
void	GetGraphObjectList (std::vector< GraphObject::Ptr > &orGraphObjectList)
	Get GraphObject list. More...
void	GetGraphObjectManagerList (std::vector< GraphObjectManager::Ptr > &orGraphObjectManagerList)
	Get GraphObjectManager list. More...
void	ClearGraphObjectList ()
	Clear GraphObject list. More...
float	GetMemoryUsageEstimation () const
	Get memory usage estimation for current GraphObjectManager. More...
void	ExtractGraphObjectsByObjectId (std::vector< GraphObject::Ptr > &orGraphObjectList, Int32 iObjectId)
	Extract some graph objects out by object ID. The extracted graph object will be removed from mGraphObjectList. More...

Protected Member Functions
void	LoadTrendLineProperties (Int32 iSeriesId, GraphTrendLineOptions &iorTrendLineOption) const
void	LoadValueAxisInfo (Int32 iSeriesIndex, bool iIsDualAxes, EnumValueAxis &orValueAxis) const
Protected Member Functions inherited from MsiChart::GraphObjectManager
bool	ToBool (CComVariant *ipValue) const
void	BoolToVariant (bool iValue, CComVariant *opValue) const
void	AdjustObjectsForLayer ()

Protected Attributes
Dataset::Ptr	mDatasetPtr
Legend::Ptr	mLegendPtr
std::vector< Int32 >	mGroupID
std::vector< Int32 >	mSeriesId
Rect2D	mDataArea
std::vector< TrendLineObject::Ptr >	mTrendLines [2]
std::vector< GraphObject::Ptr >	mPostTrendLineObjects
DataLabelManager::Ptr	mLabelManager
bool	mVAIndexDrawn [5]
std::set< Int32 >	mVAIndexDrawnSet
Protected Attributes inherited from MsiChart::GraphObjectManager
std::map< TripleId, GraphObject::Ptr >	mGraphObjectMap
std::vector< GraphObject::Ptr >	mGraphObjectList
std::vector< GraphObjectManager::Ptr >	mGraphObjectManagerList
	This list keeps all the children of current GraphObjectManager. More...
const TripleId	mTripleId
	Identifiy current GraphObjectManager. More...
ChartContext::Ptr	mChartContextPtr
	The drawing context instance. Only one object in a chart. More...
GraphObjectManager *	mpManager
	The manager object which created the current object. More...
double	mProgress
LayerObject *	mpCurrentLayerObject

Additional Inherited Members
Static Public Member Functions inherited from MsiChart::GraphObjectManager
static GraphObject::Ptr	OnPointDetectionByList (const std::vector< GraphObject::Ptr > &irGraphObjectList, const Point2D &irCursor, const std::vector< Int32 > &irObjectIds, Int32 &iorDistance, Int32 iRadius, std::vector< GraphObject::Ptr > &iorGraphObjectsAround, EnumGraphObjectUsage iUsage=GOU_NORMAL_HIGHLIGHT)
Protected Types inherited from MsiChart::GraphObjectManager
typedef std::pair< TripleId, GraphObject::Ptr >	MapPair

Member Typedef Documentation

Ptr

typedef MSynch::SmartPtr<Plot> MsiChart::Plot::Ptr

Constructor & Destructor Documentation

Plot()

MsiChart::Plot::Plot	(	const TripleId &	irTripleId,
		GraphObjectManager *	ipManager,
		const Rect2D &	irDataArea
	)

~Plot()

virtual MsiChart::Plot::~Plot ( )

virtual

Member Function Documentation

AddLegendMarkerToCollection()

void MsiChart::Plot::AddLegendMarkerToCollection	(	Int32	iSeriesId,
		GraphCollectionObject *	ipRiserCollection,
		bool	iIsLineCollection = false,
		bool	iIsShownMarker = true,
		unsigned char	iMarkerShape = DssGraphMarkerShapeRectangle,
		bool	iIsShownLine = true,
		bool	iIsLineVertical = false
	)		const

As the name, add legend marker to the collection they belong to.

Parameters

iSeriesId	The input series ID.
ipRiserCollection	The input collection.
iIsLineCollection	Indicate whether it is line collection, true for line chart.
iMarkerShape	Indicate the marker shape.
iIsShownLine	Indicate whether the lines are shown or not.

AddSeries()

void MsiChart::Plot::AddSeries ( Int32  iSeriesId )

inline

Add a series to the category plot

Parameters

iSeriesId

The input series ID.

AddTrendLineAnadRefLine()

void MsiChart::Plot::AddTrendLineAnadRefLine

(

GraphObject::Ptr

iLine

)

AdjustTrendLineEquation()

void MsiChart::Plot::AdjustTrendLineEquation	(	Rect2D &	irRect,
		EnumTrendLineIndex	iIndex
	)

Adjust trend line equation position.

Parameters

irRect	The rectangle trend lines should be in.
iIndex	Indicate which trend line collection we would like to adjust, Y1, Y2 or Both.

CreateTrendLine()

void MsiChart::Plot::CreateTrendLine	(	const std::vector< double > &	irX,
		const std::vector< double > &	irY,
		const TripleId &	irTripleId,
		GraphObjectManager *	ipManager,
		GraphCollectionObject *	ipParentObject,
		Axis *	ipXAxis,
		Axis *	ipYAxis,
		GraphTrendLineOptions *	ipTrendLineOptions,
		const Rect2D &	irDataArea,
		bool	iIsVertical,
		const Point2D &	irDepthOffset,
		bool	iIsY2 = false
	)

Create a trend line, add it to collection and update the format line information if necessary.

Parameters

irX	The input sample point X coordinate.
irY	The input sample point Y coordinate.
irTripleId	The input triple ID for trend line.
ipManager	Indicate the manager to create the trend line.
ipParentObject	Indicate the parent of the trend line.
ipXAxis	Indicate the axis where we get the irX.
ipYAxis	Indicate the axis where we get the irY.
ipTrendLineOptions	The input trend line option.
irDataArea	The input data area.
iIsVertical	Indicate whether the chart is vertical or horizontal.
irDepthOffset	The input depth information.
iIsY2	Indicate whether the trend line belongs to Y1 or Y2.

Draw()

virtual void MsiChart::Plot::Draw ( )

virtual

This function is the drawing function for all graph object. Draw all the GraphObject in the GraphObject list which maintained by current GraphObjectManager.

Reimplemented from MsiChart::GraphObjectManager.

Reimplemented in MsiChart::ABLPlot, MsiChart::PiePlot, MsiChart::FunnelPlot, MsiChart::ValuePlot, MsiChart::GaugePlot, MsiChart::HistogramPlot, MsiChart::GridPlot, MsiChart::PolarPlot, MsiChart::GanttPlot, MsiChart::ValuePiePlot, CategoryPiePlot, and MsiChart::GridPiePlot.

DrawPostTrendLineObjects()

void MsiChart::Plot::DrawPostTrendLineObjects

(

)

Draw objects in mPostTrendLineObjects.

DrawTrendLinesAndEquations() [1/2]

virtual void MsiChart::Plot::DrawTrendLinesAndEquations ( )

virtual

Draw trendlines and equations.

Reimplemented in MsiChart::ABLPlot.

DrawTrendLinesAndEquations() [2/2]

void MsiChart::Plot::DrawTrendLinesAndEquations	(	Rect2D &	irClipRect,
		bool	iIsY2 = false
	)

Draw trend lines and their equations.

Parameters

irClipRect	The rectangle which is used to clip the trend line.
iIsY2	Indicate whether draw trend line for Y1 or Y2.

GenerateImageMap()

virtual void MsiChart::Plot::GenerateImageMap ( ImageMap &  iorImageMap )

virtual

This function is to generate the image map for the web.

Parameters

ioImageMap

Input and output parameter which contains the image map.

Reimplemented from MsiChart::GraphObjectManager.

Reimplemented in MsiChart::ABLPlot, MsiChart::ValuePlot, MsiChart::GaugePlot, MsiChart::HistogramPlot, MsiChart::GridPlot, MsiChart::ValuePiePlot, CategoryPiePlot, and MsiChart::GridPiePlot.

GeneratePostTrendLineViews()

void MsiChart::Plot::GeneratePostTrendLineViews

(

)

Generate UIViews for objects in mPostTrendLineObjects.

GenerateView()

virtual void MsiChart::Plot::GenerateView ( )

virtual

Generate UIViews for drawing. The UIViews generation is seperated from Draw() and put here to optimize the workflow and support Memory Governor's work. This function has the same workflow as Draw(), which means either function is changed, the other one has to update its workflow too. All the inheriting classes has to ensure this restriction too.

Reimplemented from MsiChart::GraphObjectManager.

Reimplemented in MsiChart::ABLPlot, MsiChart::PiePlot, MsiChart::FunnelPlot, MsiChart::ValuePlot, MsiChart::GaugePlot, MsiChart::HistogramPlot, MsiChart::PolarPlot, and MsiChart::GanttPlot.

GetDataArea()

void MsiChart::Plot::GetDataArea

(

Rect2D &

orDataArea

)

const

Get the data area for the plot.

Parameters

orDataArea

The output data area.

GetDataLabelManager()

DataLabelManager::Ptr MsiChart::Plot::GetDataLabelManager ( )

inline

GetDataset()

Dataset::Ptr MsiChart::Plot::GetDataset ( ) const

inline

Get dataset pointer.

Returns

The dataset pointer.

GetGMPiePositon()

virtual bool MsiChart::Plot::GetGMPiePositon ( Point2D &  orCood, double  iXInput, double  iYInput, Int32  iXSubIndex = 0, Int32  iYSubIndex = 0, Int32  iXSectionCount = 1, Int32  iYSectionCount = 1, Int32  iRadius = 2  )

virtual

Reimplemented in CategoryPiePlot, MsiChart::ValuePiePlot, and MsiChart::GridPiePlot.

GetGroupSpace()

virtual bool MsiChart::Plot::GetGroupSpace ( std::vector< Int32 > &  orVect, Int32  iGroupIndex  )

virtual

Reimplemented in MsiChart::PiePlot.

GetLegend()

Legend::Ptr MsiChart::Plot::GetLegend ( ) const

inline

Get legend pointer.

Returns

The legend pointer.

GetMaxElementOffsetClippedByBoundary()

virtual bool MsiChart::Plot::GetMaxElementOffsetClippedByBoundary ( bool  iIsOnXAxis, double &  orLowOffset, double &  orHighOffset  )

virtual

Reimplemented in MsiChart::ValuePlot.

GetMaxElementRadius()

virtual Int32 MsiChart::Plot::GetMaxElementRadius ( )

virtual

Reimplemented in MsiChart::ValuePlot, MsiChart::ValuePiePlot, MsiChart::GridPlot, and MsiChart::GridPiePlot.

GetSeriesIndexByID()

Int32 MsiChart::Plot::GetSeriesIndexByID

(

Int32

iSeriesId

)

const

Get the series index by series ID. We do a binary search in mSeriesId since it is ordered vector.

Parameters

iSeriesId

The input series ID.

Returns

The series index

GetToolTipData()

virtual bool MsiChart::Plot::GetToolTipData ( Int32  iSeriesID, Int32  iGroupID, double &  orValue, double &  orPercentValue, Int32  iOffset = 0  )

virtual

Reimplemented in MsiChart::ABLPlot, MsiChart::PiePlot, MsiChart::FunnelPlot, and MsiChart::HistogramPlot.

GetVAMetricIndexDrawn()

bool MsiChart::Plot::GetVAMetricIndexDrawn ( Int32  iValueMetricIndex )

inline

HasTrendLines()

bool MsiChart::Plot::HasTrendLines ( ) const

inline

LoadTrendLineProperties()

void MsiChart::Plot::LoadTrendLineProperties ( Int32  iSeriesId, GraphTrendLineOptions &  iorTrendLineOption  ) const

protected

Load the trend line properties for series specified by iSeriesId.

Parameters

iSeriesId	The input series ID.
iorTrendLineOption	The input and output trend line option.

LoadValueAxisInfo()

void MsiChart::Plot::LoadValueAxisInfo ( Int32  iSeriesIndex, bool  iIsDualAxes, EnumValueAxis &  orValueAxis  ) const

protected

Load the value axis information for each series.

Parameters

iSeriesIndex	The input series index.
iIsDualAxes	Indicate whether it is dual axis or not.
orValueAxis	The output reference to value axis variable.

MoveLabel()

void MsiChart::Plot::MoveLabel	(	TextObject *	ipTextObject,
		const Point2D &	irTopRight,
		const Point2D &	irBottomLeft,
		bool	iIsReverse,
		bool	iIsVertical,
		EnumDSSGraphDataTextPosition	iLabelLocation
	)		const

Move the labels.

Parameters

ipTextObject	The input text object that is to be moved.
irTopRight	The top or right point according to the new center point.
irBottomLeft	The bottom or left point according to the new center point.
iIsReverse	Indicate whether reverse, two things will affect this: Axis reverse and data negative or positive.
iIsVertical	Indicate whether the chart is vertical or horizontal.
iLabelLocation	Indicate the label position.
iSmart,whether	use smart label or not.

OnPointDetection()

virtual GraphObject::Ptr MsiChart::Plot::OnPointDetection ( const Point2D &  irCursor ) const

virtual

Provided the cursor coordinate, this function returns the GraphObject which contains that coordinate. If there are more then one GraphObject contains this coordinate, the one on top layer will be returned.

Parameters

irCursor

The coordinate of cursor.

Returns

Smart pointer to the selected object. NULL if no selected object is found.

Reimplemented from MsiChart::GraphObjectManager.

Reimplemented in MsiChart::ABLPlot, MsiChart::PiePlot, MsiChart::FunnelPlot, MsiChart::ValuePlot, MsiChart::GaugePlot, MsiChart::HistogramPlot, MsiChart::GridPlot, MsiChart::GanttPlot, MsiChart::ValuePiePlot, CategoryPiePlot, and MsiChart::GridPiePlot.

OnRectangleSelection()

virtual void MsiChart::Plot::OnRectangleSelection ( const Rect2D &  irRect, std::vector< GraphObject::Ptr > &  iorSelectedObjects  ) const

virtual

This function provides the rectangle hit test detection service. Provided a bounding rectangle, this function can tell all the object inside that area by the parameter ioSelectedObjects.

Parameters

irRect	Specifies the bounding rectangle.
iorSelectedObjects	To store the pointers of the selected objects. This function will append the smart pointer of each selected GraphObject in current GraphObjectCreater to ioSelectedObjects.

Reimplemented from MsiChart::GraphObjectManager.

Reimplemented in MsiChart::PiePlot, MsiChart::ValuePlot, MsiChart::HistogramPlot, MsiChart::GridPlot, MsiChart::ValuePiePlot, and MsiChart::GridPiePlot.

RefreshValueAxis()

virtual void MsiChart::Plot::RefreshValueAxis ( const std::map< Int32, std::pair< double, double > > &  irScaleSet, const Rect2D &  irRect  )

virtual

Reimplemented in MsiChart::ValuePlot.

SetDataArea()

void MsiChart::Plot::SetDataArea

(

const Rect2D &

irDataArea

)

Set the data area for the plot.

Parameters

irDataArea

The input data area.

SetDataset()

void MsiChart::Plot::SetDataset ( Dataset::Ptr  iDataSetPtr )

inline

Set dataset to plot.

Parameters

iLegendPtr

The input dataset pointer.

SetLegend()

void MsiChart::Plot::SetLegend ( Legend::Ptr  iLegendPtr )

inline

Set legend to plot.

Parameters

iLegendPtr

The input legend pointer.

SetVAMetricIndexDrawn()

void MsiChart::Plot::SetVAMetricIndexDrawn ( Int32  iValueMetricIndex )

inline

Member Data Documentation

mDataArea

Rect2D MsiChart::Plot::mDataArea

protected

mDatasetPtr

Dataset::Ptr MsiChart::Plot::mDatasetPtr

protected

mGroupID

std::vector<Int32> MsiChart::Plot::mGroupID

protected

mLabelManager

DataLabelManager::Ptr MsiChart::Plot::mLabelManager

protected

mLegendPtr

Legend::Ptr MsiChart::Plot::mLegendPtr

protected

mPostTrendLineObjects

std::vector<GraphObject::Ptr> MsiChart::Plot::mPostTrendLineObjects

protected

mSeriesId

std::vector<Int32> MsiChart::Plot::mSeriesId

protected

mTrendLines

std::vector<TrendLineObject::Ptr> MsiChart::Plot::mTrendLines[2]

protected

mVAIndexDrawn

bool MsiChart::Plot::mVAIndexDrawn[5]

protected

mVAIndexDrawnSet

std::set<Int32> MsiChart::Plot::mVAIndexDrawnSet

protected
