#include <Axis.h>

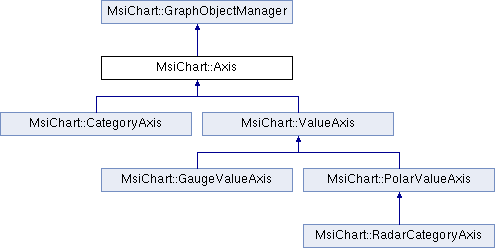

Inheritance diagram for MsiChart::Axis:

Public Types
typedef MSynch::SmartPtr< Axis >	Ptr

Public Types inherited from MsiChart::GraphObjectManager
typedef MSynch::SmartPtr< GraphObjectManager >	Ptr

Public Member Functions
	Axis (const TripleId &irTripleId, GraphObjectManager *ipManager, unsigned char iAxisLabelsLocation, unsigned char iAxisDirection)

virtual	~Axis ()

void	SetDeviceDataArea (const Rect2D &irDeviceDataArea)

void	GetDeviceDataArea (Rect2D &orDeviceDataArea)

virtual void	GetOptions (Int32 iSeriesId, Int32 iPropertyId, CComVariant *opValue) const

virtual GraphObject::Ptr	OnPointDetection (const Point2D &irCursor) const

bool	IsReverseOrder ()

void	SetDepthAndDirection (Int32 iDepth, Int32 iDepthDirection)

void	GenerateAxisLine (std::vector< GraphObject::Ptr > &iorGraphObjectList)

void	GenerateGridLines (const Rect2D &irDataArea, Int32 iAreaId, std::vector< GraphObject::Ptr > &iorGraphObjectList)

void	GenerateGridLines ()

void	GenerateInterlacedGrids (const Rect2D &irDataArea, Int32 iAreaId, std::vector< GraphObject::Ptr > &iorGraphObjectList)

virtual void	GetInterlacedPositions (std::vector< double > &orPositions)

virtual double	GetLogicalCoord (Int32 iAbsoluteCoord)=0

virtual float	GetAbsoluteCoord (double iLogicalCoord)=0

virtual void	GetMinMaxLogicalCoord (double &orMin, double &orMax) const =0

virtual double	GetSlopeFactor (double iLogicalCoord) const =0

virtual bool	IsLogarithmic () const

virtual double	GetPositionAtTick (double iTickValue)=0

bool	IsMajorGridShown () const

bool	IsInterlacedShown () const

bool	IsLabelsShown () const

bool	IsTitleShown () const

void	ReserveTitleArea (Rect2D &iorTitleArea)

void	SetAxisInfoFor3D (Int32 iAxisLength, Int32 iAxisMargin)

Int32	GetAxisLengthFor3D () const

double	ValueToPositionFor3D (double iLogicalCoord) const

virtual void	GenerateLabelsFor3D (const std::vector< Point2D > &irGridPoints, const DVector2D &irUnitOffsetDirection, GraphCollectionObject *ipLabelCollectioin, std::vector< GraphObject::Ptr > &iorGraphObjectList)=0

void	GenerateTitleFor3D (Int32 iObjectId, Point2D &irRefPoint, const DVector2D &irUnitOffsetDirection, std::vector< GraphObject::Ptr > &iorGraphObjectList)

virtual void	GetGridLinePositionsFor3D (std::vector< double > &orGridLinePositions, EnumGraphObjectType iGraphObjectType) const =0

virtual void	TrimAxisPadding (Rect2D &iorRect, bool iUseFixedMargin=true)

Int32	GetAxisTitleLocationId (Int32 iAxisTitleId) const

Int32	GetInterlacedGridId () const

void	InitObjectSet (const TripleId &irTripleId, EnumGraphObjectType iGraphObjectType)

GraphCollectionObject *	GetObjectSet (EnumGraphObjectType iGraphObjectType) const

virtual void	OnZooming (Int32 iOldStart, Int32 iOldEnd, Int32 iNewStart, Int32 iNewEnd)=0

void	DrawTitleAndLabels ()

void	SetIsAxisForRangeLegend (bool iIsForRangeLegend)

double	GetIntervalSpace ()

virtual Int32	LayoutAxis (bool iIsRotated, Int32 &orMaxLabelSpace)=0

Int32	GetLabelRotation ()

virtual Int32	GetUniformAxisExtraPadding ()

bool	IsUniformAxis () const

void	SetAsUniformAxis (bool iUniformAxis)

Public Member Functions inherited from MsiChart::GraphObjectManager
	GraphObjectManager (const TripleId &irTripleId, GraphObjectManager *ipManager)

virtual	~GraphObjectManager ()

void	GetTripleId (TripleId &orTripleId) const

virtual GraphObject::Ptr	OnPointDetectionEx (const Point2D &irCursor, const std::vector< Int32 > &irObjectIds, Int32 &iorDistance, Int32 iRadius, std::vector< GraphObject::Ptr > &iorGraphObjectsAround, EnumGraphObjectUsage iUsage=GOU_NORMAL_HIGHLIGHT)

virtual void	OnPointInPolygon (const Point2D &irCursor, const std::vector< Int32 > &irObjectIds, const std::vector< Point2D > &iPoints, std::vector< GraphObject::Ptr > &iorGraphObjectsIn) const

virtual void	OnRectangleSelection (const Rect2D &irRect, std::vector< GraphObject::Ptr > &iorSelectedObjects) const

virtual void	Draw ()

virtual void	GenerateView ()

virtual void	GenerateImageMap (ImageMap &iorImageMap)

virtual void	GenerateMapAndList ()=0

virtual GraphObject::Ptr	GetGraphObject (const TripleId &irTripleId, bool iRecursive=true) const

GraphObjectManager::Ptr	GetGraphObjectManager (const TripleId &irTripleId, bool iRecursive=true) const

void	GetAllGraphObjectInfo (std::vector< CGRect > &iAllGraphObjectsBorder, std::vector< MsiChart::TripleId > &iAllGraphObjectsTripleId)

virtual void	GenerateVirtualMarker ()

ChartContext::Ptr	GetChartContext () const

Int32	GetChartAreaId () const

void	AddToMapAndList (GraphObject::Ptr iGraphObjectPtr)

void	AddToMapAndList (std::vector< GraphObject::Ptr > iGraphObjectPtrList)

void	AddToList (GraphObject::Ptr iGraphObjectPtr)

void	AddToManagerList (GraphObjectManager::Ptr iGraphObjectPtr)

void	AddToMap (GraphObject::Ptr iGraphObjectPtr)

void	InsertGraphObjectListAfterObject (const std::vector< GraphObject::Ptr > &irGraphObjectList, const GraphObject *ipGraphObject)

virtual void	GenerateInterpolationFrame (double iProgress, LayerObject *ipLayerObject)

void	MergeObjectList (GraphObjectManager *ipGraphObjectManager, bool iIsAppend)

void	GetGraphObjectList (std::vector< GraphObject::Ptr > &orGraphObjectList)
	Get GraphObject list. More...

void	GetGraphObjectManagerList (std::vector< GraphObjectManager::Ptr > &orGraphObjectManagerList)
	Get GraphObjectManager list. More...

void	ClearGraphObjectList ()
	Clear GraphObject list. More...

float	GetMemoryUsageEstimation () const
	Get memory usage estimation for current GraphObjectManager. More...

void	ExtractGraphObjectsByObjectId (std::vector< GraphObject::Ptr > &orGraphObjectList, Int32 iObjectId)
	Extract some graph objects out by object ID. The extracted graph object will be removed from mGraphObjectList. More...

Protected Member Functions
virtual void	CreateAxisLine ()

Int32	GetIndex () const

void	ReserveTitle (Rect2D &iorTitleArea, bool iIsReversed)

void	UpdateTitleLocation (const Rect2D &irTitleArea)

void	ReserveDepthAxisLine (Rect2D &iorDeviceDataArea, bool iIsReversed=false, bool iBothDirections=false) const

void	GetLabelOffset (Int32 iLabelLocation, Point2D &orOffset) const

bool	HasLabelsOnBothSides () const

bool	HasDepthAxisLine (Int32 iLabelLocation) const

bool	IsVerticalAxis () const

void	GetOneGridLine (Int32 iLocation, Int32 iGridStyle, Int32 iTickLength, const Point2D &irLeftOrBottom, const Point2D &irRightOrTop, std::vector< Point2D > &orPolyLine)

void	GenerateOneLineObject (const TripleId &irTripleId, const std::vector< Point2D > &irPolyLine, GraphCollectionObject *ipGridLineSet)

bool	IsRightDirection () const

bool	IsLeftDirection () const

bool	IsUpDirection () const

bool	IsDownDirection () const

bool	HasOuterTicks (Int32 iGridStyle) const

bool	HasTwoGridLineParts (Int32 iGridStyle) const

void	TrimMarginsForDepthAxis (Int32 &iorLowMargin, Int32 &iorHighMargin) const

void	GetDepthMargin (Int32 &orLowMargin, Int32 &orHighMargin) const

void	MoveLabel (TextObject *ipLabel, const Point2D &irGridPoint, const DVector2D &irUnitOffsetDirection, Int32 iLabelMargin=gLabelMargin) const

void	MoveTitleForManual (TextObject *ipAxisTitle) const

void	MoveGraphObjectList (std::vector< GraphObject::Ptr > &iorGraphObjectList)

void	LoadProperties ()

Protected Member Functions inherited from MsiChart::GraphObjectManager
bool	ToBool (CComVariant *ipValue) const

void	BoolToVariant (bool iValue, CComVariant *opValue) const

void	AdjustObjectsForLayer ()

Protected Attributes
GraphAxisGeneral	mAxisInfo
	General axis properties. More...

GraphAxisGrid	mMajorGrid
	Properties of major grid lines. More...

GraphAxisGrid	mMinorGrid
	Properties of minor grid lines. More...

Rect2D	mDeviceDataArea
	Indicate the data area of current axis. More...

Int32	mTickLength
	Tick Length. More...

bool	mUseDepth
	Indicate whether to use depth or not. More...

Int32	mDepth
	Indicate the depth value. More...

Int32	mDepthDirection
	Indicate the depth direction. More...

Point2D	mDepthOffset
	Indicate the depth offset. More...

MBase::String	mAxisTitle
	Axis title string. More...

double	mLowTrim

double	mHighTrim
	When depth is not used, the grid lines need to be put into manager's graph object list. More...

std::vector< GraphObject::Ptr >	mManagerGraphObjectList

bool	mIsAxisFor3D

Int32	mAxisLengthFor3D

Int32	mAxisMarginFor3D

GraphCollectionObject *	mpMajorGridSet

GraphCollectionObject *	mpMinorGridSet

GraphCollectionObject *	mpInterlacedGridSet

GraphCollectionObject *	mpAxisTitleSet

GraphCollectionObject *	mpAxisLabelSet

GraphCollectionObject *	mpAxisLineSet

bool	mIsForRangeLegend
	Is this axis is used by a range legend. More...

bool	mIsUniformAxis

Protected Attributes inherited from MsiChart::GraphObjectManager
std::map< TripleId, GraphObject::Ptr >	mGraphObjectMap

std::vector< GraphObject::Ptr >	mGraphObjectList

std::vector< GraphObjectManager::Ptr >	mGraphObjectManagerList
	This list keeps all the children of current GraphObjectManager. More...

const TripleId	mTripleId
	Identifiy current GraphObjectManager. More...

ChartContext::Ptr	mChartContextPtr
	The drawing context instance. Only one object in a chart. More...

GraphObjectManager *	mpManager
	The manager object which created the current object. More...

double	mProgress

LayerObject *	mpCurrentLayerObject

Additional Inherited Members
Static Public Member Functions inherited from MsiChart::GraphObjectManager
static GraphObject::Ptr	OnPointDetectionByList (const std::vector< GraphObject::Ptr > &irGraphObjectList, const Point2D &irCursor, const std::vector< Int32 > &irObjectIds, Int32 &iorDistance, Int32 iRadius, std::vector< GraphObject::Ptr > &iorGraphObjectsAround, EnumGraphObjectUsage iUsage=GOU_NORMAL_HIGHLIGHT)

Protected Types inherited from MsiChart::GraphObjectManager
typedef std::pair< TripleId, GraphObject::Ptr >	MapPair

Detailed Description

Deals with some common options and operations of axis. Generally, there are following GraphObjects in the GraphObjectList or GraphObjectMap of Axis:

Axis title.
Axis line.
A collection of Axis labels.
A collection of grid lines. This class is the base class of ValueAxis and CategoryAxis.

Member Typedef Documentation

◆ Ptr

typedef MSynch::SmartPtr<Axis> MsiChart::Axis::Ptr

Constructor & Destructor Documentation

◆ Axis()

MsiChart::Axis::Axis	(	const TripleId &	irTripleId,
		GraphObjectManager *	ipManager,
		unsigned char	iAxisLabelsLocation,
		unsigned char	iAxisDirection
	)

Constructor

Parameters

irTriple	Identifies the object.
ipManager	Pointer to the GraphObjectManager who created current object.
iAxisLabelsLocation	Indicates where to show axis labels. Should be a value in EnumAxisLabelsLocation.
iAxisDirection	Indicates the direction of current axis. Should be a value in EnumAxisDirection.

◆ ~Axis()

virtual MsiChart::Axis::~Axis ( )

virtual

Member Function Documentation

◆ CreateAxisLine()

virtual void MsiChart::Axis::CreateAxisLine ( )

protectedvirtual

Create axis line. This is a helper method of GenerateAxisLine().

Reimplemented in MsiChart::ValueAxis.

◆ DrawTitleAndLabels()

void MsiChart::Axis::DrawTitleAndLabels ( )

Only used by uniform axis in GraphMatrix. Draw axis title and axis labels.

◆ GenerateAxisLine()

void MsiChart::Axis::GenerateAxisLine ( std::vector< GraphObject::Ptr > & iorGraphObjectList )

Generate axis line

Parameters

iorGraphObjectList The axis line will be put into iorGraphObjectList.

◆ GenerateGridLines() [1/2]

void MsiChart::Axis::GenerateGridLines	(	const Rect2D &	irDataArea,
		Int32	iAreaId,
		std::vector< GraphObject::Ptr > &	iorGraphObjectList
	)

This method is supposed to be called by PlotManager. This method will generate Major and Minor grid lines.

Parameters

irDataArea	Specify the data area of current chart area.
AreaId	Specify the ID of current chart area.
iorGraphObjectList	The grid lines will be put into iorGraphObjectList.

◆ GenerateGridLines() [2/2]

void MsiChart::Axis::GenerateGridLines ( )

◆ GenerateInterlacedGrids()

void MsiChart::Axis::GenerateInterlacedGrids	(	const Rect2D &	irDataArea,
		Int32	iAreaId,
		std::vector< GraphObject::Ptr > &	iorGraphObjectList
	)

This method is supposed to be called by PlotManager. This method will generate interlaced grid interval.

Parameters

irDataArea	Specify the data area of current chart area.
AreaId	Specify the ID of current chart area.
iorGraphObjectList	If depth is not used, the interlaced grids will be put into iorGraphObjectList.

◆ GenerateLabelsFor3D()

virtual void MsiChart::Axis::GenerateLabelsFor3D	(	const std::vector< Point2D > &	irGridPoints,
		const DVector2D &	irUnitOffsetDirection,
		GraphCollectionObject *	ipLabelCollectioin,
		std::vector< GraphObject::Ptr > &	iorGraphObjectList
	)

pure virtual

Generate labels of current axis in 3D chart.

Parameters

irGridPoints	Specifies the grid positions to indicate where the labels should be drawn.
irUnitOffsetDirection	Specifies the direction of the labels relative to the grid positions.
ipLabelCollection	Specifies the label collection object.
iorGraphObjectList	The labels will be appended to this list.

Implemented in MsiChart::ValueAxis, and MsiChart::CategoryAxis.

◆ GenerateOneLineObject()

void MsiChart::Axis::GenerateOneLineObject	(	const TripleId &	irTripleId,
		const std::vector< Point2D > &	irPolyLine,
		GraphCollectionObject *	ipGridLineSet
	)

protected

Generate one grid line and put it into grid line collection and mGraphObjectList.

Parameters

irTriple	Specifies the TripleId of current grid line.
irPolyLine	Specifies the grid line.
ipGridLineSet	Points to a GraphCollectionObject which indicates the grid line collection.

◆ GenerateTitleFor3D()

void MsiChart::Axis::GenerateTitleFor3D	(	Int32	iObjectId,
		Point2D &	irRefPoint,
		const DVector2D &	irUnitOffsetDirection,
		std::vector< GraphObject::Ptr > &	iorGraphObjectList
	)

Generate title of current axis in 3D chart.

Parameters

iObjectId	Specifies the Object ID for the axis title.
irRefPoint	Specifies reference point to indicate where the labels should be drawn.
irUnitOffsetDirection	Specifies the direction of the labels relative to irRefPoint.
iorGraphObjectList	The title will be appended to this list.

◆ GetAbsoluteCoord()

virtual float MsiChart::Axis::GetAbsoluteCoord ( double iLogicalCoord )

pure virtual

return logical coordinate for trendline

Parameters

iLogicalCoord coordinate

Returns: absolute coordinate

Implemented in MsiChart::ValueAxis, MsiChart::CategoryAxis, and MsiChart::PolarValueAxis.

◆ GetAxisLengthFor3D()

Int32 MsiChart::Axis::GetAxisLengthFor3D ( ) const

inline

Get axis length for 3D chart.

Returns: Return the length of current axis.

◆ GetAxisTitleLocationId()

Int32 MsiChart::Axis::GetAxisTitleLocationId ( Int32 iAxisTitleId ) const

Get the object ID for the axis title of current axis in 3D chart.

Parameters

iAxisTitleId

Returns: Return the object ID of current axis title in 3D chart.

◆ GetDepthMargin()

void MsiChart::Axis::GetDepthMargin	(	Int32 &	orLowMargin,
		Int32 &	orHighMargin
	)		const

protected

Get depth margins generated by depth axis line.

Parameters

iorLowMargin,iorHighMargin Output the depth margins.

◆ GetDeviceDataArea()

void MsiChart::Axis::GetDeviceDataArea ( Rect2D & orDeviceDataArea )

inline

Get device data area.

Parameters

orDeviceDataArea Output the rectangle of device data area

◆ GetGridLinePositionsFor3D()

virtual void MsiChart::Axis::GetGridLinePositionsFor3D	(	std::vector< double > &	orGridLinePositions,
		EnumGraphObjectType	iGraphObjectType
	)		const

pure virtual

Get the grid line positions of current axis in 3D chart.

Parameters

orGridLinePositions	Output the grid line positions.
iGraphObjectType	Indicates which graph object (label, grid line or interlaced grid) are the grid positions used for. This is useful for category axis.

Implemented in MsiChart::ValueAxis, and MsiChart::CategoryAxis.

◆ GetIndex()

Int32 MsiChart::Axis::GetIndex ( ) const

protected

Get the index in gAxisObjects from Axis ID.

Returns: Axis index in gAxisObject[].

◆ GetInterlacedGridId()

Int32 MsiChart::Axis::GetInterlacedGridId ( ) const

Get the object ID of interlaced grids for current axis.

Returns: Return the object ID of interlaced grids for current axis.

◆ GetInterlacedPositions()

virtual void MsiChart::Axis::GetInterlacedPositions ( std::vector< double > & orPositions )

virtual

Reimplemented in MsiChart::CategoryAxis.

◆ GetIntervalSpace()

double MsiChart::Axis::GetIntervalSpace ( )

Get the interval space, for category axis, the group size; for value axis the space between 2 ticks.

◆ GetLabelOffset()

void MsiChart::Axis::GetLabelOffset	(	Int32	iLabelLocation,
		Point2D &	orOffset
	)		const

protected

This is a helper method to update axis label location.

Parameters

iLabelLocation	Should be a value in EnumAxisLabelsLocation. For convience, ALL_LEFT_RIGHT is treated as ALL_LEFT, and ALL_BOTTOM_TOP is treated as ALL_BOTTOM.
orOffset	Output the offset of label location with consideration of depth.

◆ GetLabelRotation()

Int32 MsiChart::Axis::GetLabelRotation ( )

◆ GetLogicalCoord()

virtual double MsiChart::Axis::GetLogicalCoord ( Int32 iAbsoluteCoord )

pure virtual

return logical coordinate for trendline

Parameters

iAbsoluteCoord coordinate along the axis

Returns: logical coordinate

Implemented in MsiChart::ValueAxis, MsiChart::CategoryAxis, and MsiChart::PolarValueAxis.

◆ GetMinMaxLogicalCoord()

virtual void MsiChart::Axis::GetMinMaxLogicalCoord	(	double &	orMin,
		double &	orMax
	)		const

pure virtual

Get min tick and max tick of current axis in logical coordinate.

Parameters

orMin	Min tick.
orMax	Max tick.

Implemented in MsiChart::ValueAxis, and MsiChart::CategoryAxis.

◆ GetObjectSet()

GraphCollectionObject* MsiChart::Axis::GetObjectSet ( EnumGraphObjectType iGraphObjectType ) const

Get one of the following GraphCollectionObject: GraphCollectionObject* mpMajorGridSet; GraphCollectionObject* mpMinorGridSet; GraphCollectionObject* mpInterlacedGridSet; GraphCollectionObject* mpAxisTitleSet; GraphCollectionObject* mpAxisLabelSet; GraphCollectionObject* mpAxisLineSet;

Parameters

iGraphObjectType Specifies a graph object type.

Returns: Return a GraphCollectonObject according to iGraphObjectType;

◆ GetOneGridLine()

void MsiChart::Axis::GetOneGridLine	(	Int32	iLocation,
		Int32	iGridStyle,
		Int32	iTickLength,
		const Point2D &	irLeftOrBottom,
		const Point2D &	irRightOrTop,
		std::vector< Point2D > &	orPolyLine
	)

protected

Get one grid line.

Parameters

iLocation	Should be a value in EnumAxisLabelsLocation. For convience, when HasTwoGridLineParts() is true, ALL_LEFT_RIGHT is treated as ALL_LEFT, and ALL_BOTTOM_TOP is treated as ALL_BOTTOM.
iGridStyle	Specifies the style of current grid line.
iTickLenth	Specifies the tick length when iGridStyle is DssGraphGridInnerTicks or DssGraphGridOuterTicks.
irLeftOrBottom,irRightOrTop	Specifies the intersections of current grid line with axis lines assuming there is no depth.
orPolyLine	Output the grid line.

◆ GetOptions()

virtual void MsiChart::Axis::GetOptions	(	Int32	iSeriesId,
		Int32	iPropertyId,
		CComVariant *	opValue
	)		const

virtual

This function gets the options related to current GraphObjectManager.

Parameters

iSeriesId	Series ID.
iPropertyId	Specifies the property ID to be set.
opValue	A pointer to VARIANT which is used to store property value.

Implements MsiChart::GraphObjectManager.

Reimplemented in MsiChart::CategoryAxis, and MsiChart::ValueAxis.

◆ GetPositionAtTick()

virtual double MsiChart::Axis::GetPositionAtTick ( double iTickValue )

pure virtual

Implemented in MsiChart::ValueAxis, and MsiChart::CategoryAxis.

◆ GetSlopeFactor()

virtual double MsiChart::Axis::GetSlopeFactor ( double iLogicalCoord ) const

pure virtual

Get the slope factor (d(AbosluteVariable)/d(LogicalVariable)) at a speicified logical coordinate.

Parameters

iLogicalCoord Specified a logical coordinate.

Implemented in MsiChart::ValueAxis, and MsiChart::CategoryAxis.

◆ GetUniformAxisExtraPadding()

virtual Int32 MsiChart::Axis::GetUniformAxisExtraPadding ( )

virtual

Get the padding between the pass-out plotarea and the label text

Reimplemented in MsiChart::ValueAxis, and MsiChart::CategoryAxis.

◆ HasDepthAxisLine()

bool MsiChart::Axis::HasDepthAxisLine ( Int32 iLabelLocation ) const

protected

Check whether a depth axis line needs to be drawn according to a given label location. Should be a value in EnumAxisLabelsLocation. For convience, ALL_LEFT_RIGHT is treated as ALL_LEFT, and ALL_BOTTOM_TOP is treated as ALL_BOTTOM.

Returns: Return true if a depth axis line needs to be drawn according to iLabelLocation. Otherwise, return false.

◆ HasLabelsOnBothSides()

bool MsiChart::Axis::HasLabelsOnBothSides ( ) const

inlineprotected

Check whether the axis labels need to be shown on both sides or not.

Returns: Return true if the axis labels need to be shown on both sides.

◆ HasOuterTicks()

bool MsiChart::Axis::HasOuterTicks ( Int32 iGridStyle ) const

inlineprotected

Check whether a given style of grid lines has outer ticks. Specifies a style of grid lines.

Returns: Return true if iGridStyle has outer ticks. Otherwise, return false.

◆ HasTwoGridLineParts()

bool MsiChart::Axis::HasTwoGridLineParts ( Int32 iGridStyle ) const

inlineprotected

Check whether a given style of grid lines will have two grid line parts when showing labels on both sides. Specifies a style of grid lines.

Returns: Return true if iGridStyle has two grid line parts when showing labels on both sides. Otherwise, return false.

◆ InitObjectSet()

void MsiChart::Axis::InitObjectSet	(	const TripleId &	irTripleId,
		EnumGraphObjectType	iGraphObjectType
	)

Init one of the following GraphCollectionObject: GraphCollectionObject* mpMajorGridSet; GraphCollectionObject* mpMinorGridSet; GraphCollectionObject* mpInterlacedGridSet; GraphCollectionObject* mpAxisTitleSet; GraphCollectionObject* mpAxisLabelSet; GraphCollectionObject* mpAxisLineSet;

Parameters

irTripleId	Specifies a TripleId for GraphCollectionObject.
iGraphObjectType	Specifies a graph object type.

◆ IsDownDirection()

bool MsiChart::Axis::IsDownDirection ( ) const

inlineprotected

Check whether current depth direction is downwards.

Returns: Return true if current depth direction is downwards. Otherwise, return false.

◆ IsInterlacedShown()

bool MsiChart::Axis::IsInterlacedShown ( ) const

inline

Check whether to show interlaced grids or not.

◆ IsLabelsShown()

bool MsiChart::Axis::IsLabelsShown ( ) const

inline

Check whether to show axis labels or not.

◆ IsLeftDirection()

bool MsiChart::Axis::IsLeftDirection ( ) const

inlineprotected

Check whether current depth direction is to the left.

Returns: Return true if current depth direction is to the left. Otherwise, return false.

◆ IsLogarithmic()

bool MsiChart::Axis::IsLogarithmic ( ) const

inlinevirtual

Check whether current ValueAxis use logarithmic scale or not.

Returns: Return true if current ValueAxis use logarithmic scale.

Reimplemented in MsiChart::ValueAxis.

◆ IsMajorGridShown()

bool MsiChart::Axis::IsMajorGridShown ( ) const

inline

Check whether to show major grid lines or not.

◆ IsReverseOrder()

bool MsiChart::Axis::IsReverseOrder ( )

inline

Check whether the axis labels should be shown in reverse order.

Returns: Return true if the axis labels should be shown in reverse order. Otherwise, return false.

◆ IsRightDirection()

bool MsiChart::Axis::IsRightDirection ( ) const

inlineprotected

Check whether current depth direction is to the right.

Returns: Return true if current depth direction is to the right. Otherwise, return false.

◆ IsTitleShown()

bool MsiChart::Axis::IsTitleShown ( ) const

inline

Check whether to show axis title or not.

◆ IsUniformAxis()

bool MsiChart::Axis::IsUniformAxis ( ) const

inline

Whether this axis is a uniform axis. Setter/Getter.

◆ IsUpDirection()

bool MsiChart::Axis::IsUpDirection ( ) const

inlineprotected

Check whether current depth direction is upwards.

Returns: Return true if current depth direction is upwards. Otherwise, return false.

◆ IsVerticalAxis()

bool MsiChart::Axis::IsVerticalAxis ( ) const

inlineprotected

Check whether current axis is vertical or not.

Returns: Return true if mAxisDirection is AD_Y. Otherwise, return false.

◆ LayoutAxis()

virtual Int32 MsiChart::Axis::LayoutAxis	(	bool	iIsRotated,
		Int32 &	orMaxLabelSpace
	)

pure virtual

To layout the axis in "Fit to Content" mode.

Returns: the total length/height of this axis. , x-axis or y-axis to layout, if it is y axis, no need to consider iIsRotated, since the labels will always be horizontally placed. , if the labels should be rotated, useful when it is x-axis. , the max space taken by one single label, if it is rotated, this is a fixed value.

Implemented in MsiChart::ValueAxis, and MsiChart::CategoryAxis.

◆ LoadProperties()

void MsiChart::Axis::LoadProperties ( )

protected

Load related properties of Axis from ChartContext.

◆ MoveGraphObjectList()

void MsiChart::Axis::MoveGraphObjectList ( std::vector< GraphObject::Ptr > & iorGraphObjectList )

protected

Move graph objects from mManagerGraphObjectList to iorGraphObjectList.

Parameters

iorGraphObjectList Manager's graphObject list.

◆ MoveLabel()

void MsiChart::Axis::MoveLabel	(	TextObject *	ipLabel,
		const Point2D &	irGridPoint,
		const DVector2D &	irUnitOffsetDirection,
		Int32	iLabelMargin = `gLabelMargin`
	)		const

protected

Move one axis label to an appropriate position.

Parameters

ipLabel	Specifies a label.
irGridPoint	Specifies a corresonding grid point for this label.
irUnitOffsetDirection	This is a unit vector which indicates the offset direction from irGridPoint.
iLabelMargin	Specifies the margin between the label and irGridPoint.

◆ MoveTitleForManual()

void MsiChart::Axis::MoveTitleForManual ( TextObject * ipAxisTitle ) const

protected

Move title for manual layout.

Parameters

ipAxisTitle Specifies the axis title which needs to be moved.

◆ OnPointDetection()

virtual GraphObject::Ptr MsiChart::Axis::OnPointDetection ( const Point2D & irCursor ) const

virtual

Provided the cursor coordinate, this function returns the GraphObject which contains that coordinate. If there are more then one GraphObject contains this coordinate, the one on top layer will be returned.

Parameters

irCursor The coordinate of cursor.

Returns: Smart pointer to the selected object. NULL if no selected object is found.

Reimplemented from MsiChart::GraphObjectManager.

◆ OnZooming()

virtual void MsiChart::Axis::OnZooming	(	Int32	iOldStart,
		Int32	iOldEnd,
		Int32	iNewStart,
		Int32	iNewEnd
	)

pure virtual

Handles zooming event.

Parameters

iOldStart,iOldEnd	Specifies an old range.
iNewStart,iNewEnd	Specifies a new range.

Implemented in MsiChart::ValueAxis, and MsiChart::CategoryAxis.

◆ ReserveDepthAxisLine()

void MsiChart::Axis::ReserveDepthAxisLine	(	Rect2D &	iorDeviceDataArea,
		bool	iIsReversed = `false`,
		bool	iBothDirections = `false`
	)		const

protected

This method is used to reserve depth axis line area. When depth is used, the data area need to be shrinked to hold the depth axis line.

Parameters

iorDeviceDataArea	Indicates the reference rectangle for data area.
iIsReversed	If this parameter is false, iorDeviceDataArea will be adjusted by substracting depth axis line area. Otherwise, it will be adjusted by adding depth axis line area.
iBothDirection	Indicate whehter to reserve depth line at both directions.

◆ ReserveTitle()

void MsiChart::Axis::ReserveTitle	(	Rect2D &	iorTitleArea,
		bool	iIsReversed
	)

protected

This method is used to reserve title area according to a reference rectangle.

Parameters

iorTitleArea	Indicates the reference rectangle of axis title.
iIsReversed	If this parameter is false, iorTitleArea will be adjusted by substracting title area. Otherwise, it will be adjusted by adding title area.

◆ ReserveTitleArea()

void MsiChart::Axis::ReserveTitleArea ( Rect2D & iorTitleArea )

Generate title and reserve title area

Parameters

iorTitleArea This area will be adjusted by subtracting title area.

◆ SetAsUniformAxis()

void MsiChart::Axis::SetAsUniformAxis ( bool iUniformAxis )

inline

◆ SetAxisInfoFor3D()

void MsiChart::Axis::SetAxisInfoFor3D	(	Int32	iAxisLength,
		Int32	iAxisMargin
	)

inline

Set axis information for 3D chart.

Parameters

iAxisLength	Specifies the length of current axis.
iAxisMargin	Specifies the margin of current axis.

◆ SetDepthAndDirection()

void MsiChart::Axis::SetDepthAndDirection	(	Int32	iDepth,
		Int32	iDepthDirection
	)

Set depth value and depth direction. If this method is called, mUseDepth with be set to true.

Parameters

iDepth	Depth value.
iDepthDirection	Depth direction.

◆ SetDeviceDataArea()

void MsiChart::Axis::SetDeviceDataArea ( const Rect2D & irDeviceDataArea )

inline

This function sets the data area of current axis. Please make sure that this function is called before calling GenerateMapAndList(). This function sets the data area of current axis.

Parameters

irDeviceDataArea Reference to the data area of current axis.

◆ SetIsAxisForRangeLegend()

void MsiChart::Axis::SetIsAxisForRangeLegend ( bool iIsForRangeLegend )

Denote whether this axis is associated with a range legend

◆ TrimAxisPadding()

virtual void MsiChart::Axis::TrimAxisPadding	(	Rect2D &	iorRect,
		bool	iUseFixedMargin = `true`
	)

virtual

Reimplemented in MsiChart::ValueAxis, and MsiChart::CategoryAxis.

◆ TrimMarginsForDepthAxis()

void MsiChart::Axis::TrimMarginsForDepthAxis	(	Int32 &	iorLowMargin,
		Int32 &	iorHighMargin
	)		const

protected

This method trims the input margins for the space reserved by depth axis line. This method is useful for X and Category axis.

Parameters

iorLowMargin,iorHighMargin Specifies the margins which need to be trimed.

◆ UpdateTitleLocation()

void MsiChart::Axis::UpdateTitleLocation ( const Rect2D & irTitleArea )

protected

Axis title is created in ReserveTitleArea(). But the data area may be changed later. The location of axis title need to be updated using this method.

Parameters

irTitleArea Indicates the reference rectangle of axis title.

◆ ValueToPositionFor3D()

double MsiChart::Axis::ValueToPositionFor3D ( double iLogicalCoord ) const

Get 3D absolute coordinate from logical coordinate

Parameters

iLogicalCoord Specifies a logical coordinate.

Returns: 3D absolute coordinate along current axis.

Member Data Documentation

◆ mAxisInfo

GraphAxisGeneral MsiChart::Axis::mAxisInfo

protected

General axis properties.

◆ mAxisLengthFor3D

Int32 MsiChart::Axis::mAxisLengthFor3D

protected

◆ mAxisMarginFor3D

Int32 MsiChart::Axis::mAxisMarginFor3D

protected

◆ mAxisTitle

MBase::String MsiChart::Axis::mAxisTitle

protected

Axis title string.

◆ mDepth

Int32 MsiChart::Axis::mDepth

protected

Indicate the depth value.

◆ mDepthDirection

Int32 MsiChart::Axis::mDepthDirection

protected

Indicate the depth direction.

◆ mDepthOffset

Point2D MsiChart::Axis::mDepthOffset

protected

Indicate the depth offset.

◆ mDeviceDataArea

Rect2D MsiChart::Axis::mDeviceDataArea

protected

Indicate the data area of current axis.

◆ mHighTrim

double MsiChart::Axis::mHighTrim

protected

When depth is not used, the grid lines need to be put into manager's graph object list.

◆ mIsAxisFor3D

bool MsiChart::Axis::mIsAxisFor3D

protected

◆ mIsForRangeLegend

bool MsiChart::Axis::mIsForRangeLegend

protected

Is this axis is used by a range legend.

◆ mIsUniformAxis

bool MsiChart::Axis::mIsUniformAxis

protected

◆ mLowTrim

double MsiChart::Axis::mLowTrim

protected

◆ mMajorGrid

GraphAxisGrid MsiChart::Axis::mMajorGrid

protected

Properties of major grid lines.

◆ mManagerGraphObjectList

std::vector<GraphObject::Ptr> MsiChart::Axis::mManagerGraphObjectList

protected

◆ mMinorGrid

GraphAxisGrid MsiChart::Axis::mMinorGrid

protected

Properties of minor grid lines.

◆ mpAxisLabelSet

GraphCollectionObject* MsiChart::Axis::mpAxisLabelSet

protected

◆ mpAxisLineSet

GraphCollectionObject* MsiChart::Axis::mpAxisLineSet

protected

◆ mpAxisTitleSet

GraphCollectionObject* MsiChart::Axis::mpAxisTitleSet

protected

◆ mpInterlacedGridSet

GraphCollectionObject* MsiChart::Axis::mpInterlacedGridSet

protected

◆ mpMajorGridSet

GraphCollectionObject* MsiChart::Axis::mpMajorGridSet

protected

◆ mpMinorGridSet

GraphCollectionObject* MsiChart::Axis::mpMinorGridSet

protected

◆ mTickLength

Int32 MsiChart::Axis::mTickLength

protected

Tick Length.

◆ mUseDepth

bool MsiChart::Axis::mUseDepth

protected

Indicate whether to use depth or not.

Public Types

Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ Ptr

Constructor & Destructor Documentation

◆ Axis()

◆ ~Axis()

Member Function Documentation

◆ CreateAxisLine()

◆ DrawTitleAndLabels()

◆ GenerateAxisLine()

◆ GenerateGridLines() [1/2]

◆ GenerateGridLines() [2/2]

◆ GenerateInterlacedGrids()

◆ GenerateLabelsFor3D()

◆ GenerateOneLineObject()

◆ GenerateTitleFor3D()

◆ GetAbsoluteCoord()

◆ GetAxisLengthFor3D()

◆ GetAxisTitleLocationId()

◆ GetDepthMargin()

◆ GetDeviceDataArea()

◆ GetGridLinePositionsFor3D()

◆ GetIndex()

◆ GetInterlacedGridId()

◆ GetInterlacedPositions()

◆ GetIntervalSpace()

◆ GetLabelOffset()

◆ GetLabelRotation()

◆ GetLogicalCoord()

◆ GetMinMaxLogicalCoord()

◆ GetObjectSet()

◆ GetOneGridLine()

◆ GetOptions()

◆ GetPositionAtTick()

◆ GetSlopeFactor()

◆ GetUniformAxisExtraPadding()

◆ HasDepthAxisLine()

◆ HasLabelsOnBothSides()

◆ HasOuterTicks()

◆ HasTwoGridLineParts()

◆ InitObjectSet()

◆ IsDownDirection()

◆ IsInterlacedShown()

◆ IsLabelsShown()

◆ IsLeftDirection()

◆ IsLogarithmic()

◆ IsMajorGridShown()

◆ IsReverseOrder()

◆ IsRightDirection()

◆ IsTitleShown()

◆ IsUniformAxis()

◆ IsUpDirection()

◆ IsVerticalAxis()

◆ LayoutAxis()

◆ LoadProperties()

◆ MoveGraphObjectList()

◆ MoveLabel()

◆ MoveTitleForManual()

◆ OnPointDetection()

◆ OnZooming()

◆ ReserveDepthAxisLine()

◆ ReserveTitle()

◆ ReserveTitleArea()

◆ SetAsUniformAxis()

◆ SetAxisInfoFor3D()

◆ SetDepthAndDirection()

◆ SetDeviceDataArea()

◆ SetIsAxisForRangeLegend()

◆ TrimAxisPadding()

◆ TrimMarginsForDepthAxis()

◆ UpdateTitleLocation()

◆ ValueToPositionFor3D()

Member Data Documentation

◆ mAxisInfo

◆ mAxisLengthFor3D
