Strategy ONE

Relating Objects from TM1 to Strategy

TM1 has a unique modeling approach for building cubes.

The translation process involves the following steps:

  1. From TM1 to XMLA: TM1 exposes cubes through the XMLA model which is derived from the ODBO model. XMLA defines an object model that is used in conjunction with MDX to query cubes.
  2. From XMLA to Strategy: After TM1 objects are translated into the XMLA model, they are translated into the Strategy metadata model. You can then interact with TM1 content while working within the paradigm that is consistent with the rest of Strategy's products.

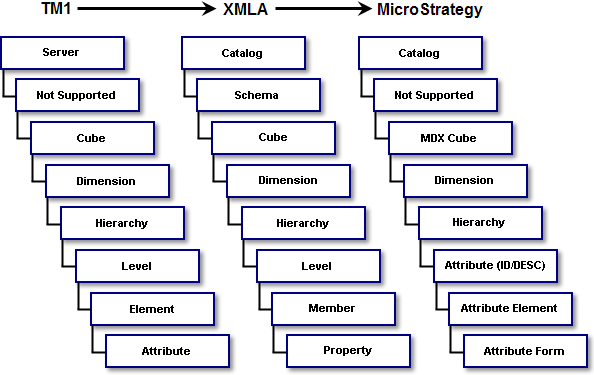

This diagram shows how TM1 objects are exposed in XMLA and then how they are related to objects in the Strategy environment.

The process for each TM1 object is described in the following topics:
