Formatting a combined grid and graph report

Grid Graph view displays a report as both a cross-tabbed grid report and a graph report in the same screen. You can determine the size and position of the grid (and, in consequence, the size and position of the graph) in Grid Graph view.

This formatting option is not available in MicroStrategy Web.

To view a report in Grid Graph view, see Grids and graphs combined.

To format Grid Graph view

Open a report.
From the View menu, select Grid Graph View.
From the Data menu, select Report Data Options.

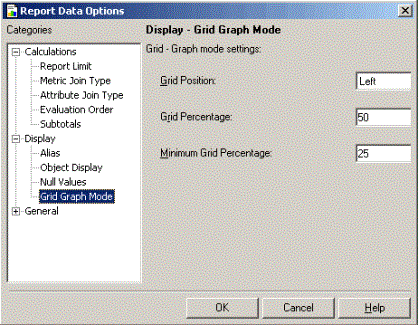

Expand the Display category and select the Grid Graph Mode subcategory.
Adjust any of the following settings for the grid report:

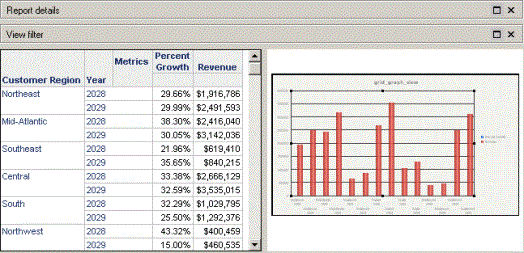

- Grid Position determines where the grid is placed in relation to the graph. For example, if you set the position to Top, the grid is displayed on top of the graph. If you set the position to Left, the grid displays to the left of the graph, as shown in the image below.

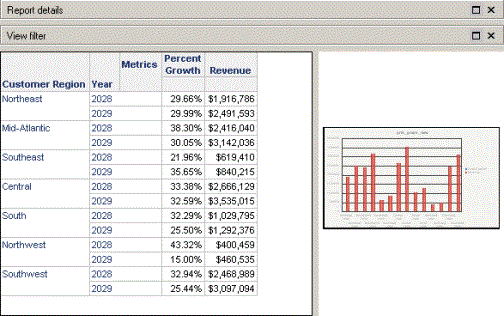

- Grid Percentage specifies how much space the grid occupies in the display area. For example, if this option is set to 75, the grid occupies 75% of the report display area while the graph is resized to fit in the remaining 25%, as shown below.
If Grid Position is set to Top or Bottom, Grid Percentage represents the height percentage. If Grid Position is set to Left or Right, Grid Percentage is the width percentage.
- Minimum Grid Percentage is the minimum space that the grid can occupy.
Click OK.
